Model: MPFBM-40A

Features
1. On-line performance: not designed for flow-line production.
2. The magnetic pipe flame cutting and beveling machine has a beveling speed of ≤5Min/pipe bevel (DN200, carbon steel pipe with standard wall thickness).
3. It has bevel cutting of: cutting pipe and one bevel simultaneously.
4. It offers a good bevel quality.

Applications

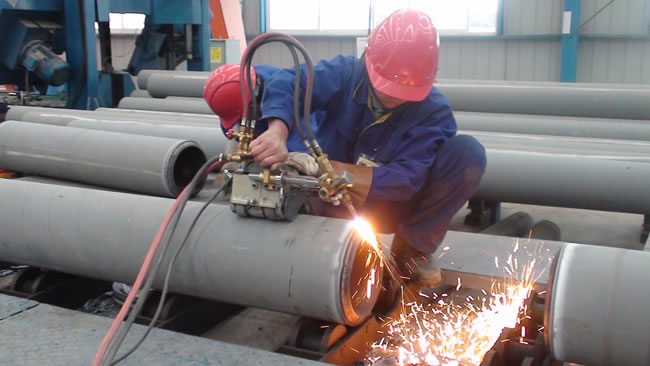

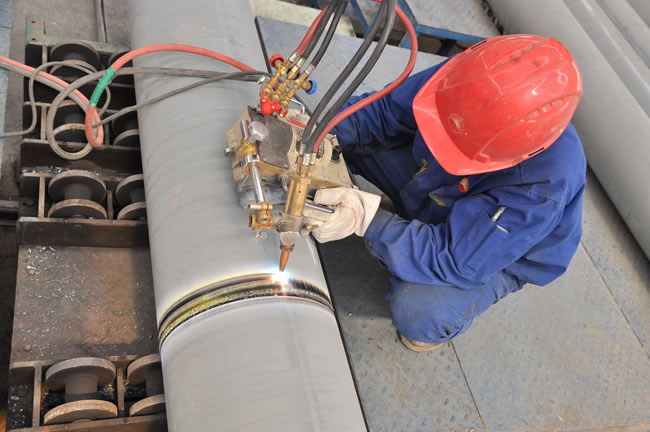

The magnetic pipe flame cutting and beveling machine uses a persistent magnet wheel which is absorbed on steel pipe to climb and cut horizontally, vertically or face-upwardly.

Technical Parameters of the Magnetic Pipe Flame Cutting and Beveling Machine
Applicable Diameters: ≥DN100(φ114)
Applicable Wall Thickness: 5-50 mm
Applicable Materials: Carbon steel, alloy steel, and cryogenic steel
Bevel Shape: V
Cutting Direction: Lengthwise
Cutting Speed: 50-750 mm/min
Magnet Suction: 50kg min
Cutting Accuracy: 0.5mm(Ф114-426mm)

As a specialized magnetic pipe flame cutting and beveling machine manufacturer based in China, Qianshan also provides pipe plasma beveling and cutting machine, piping fabrication fast fitting-up machine, pipe fabrication production line, orbital automatic pipe welding machine, and much more.
