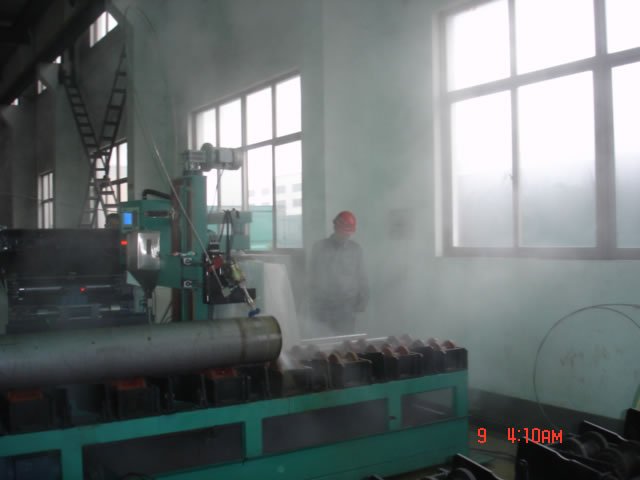

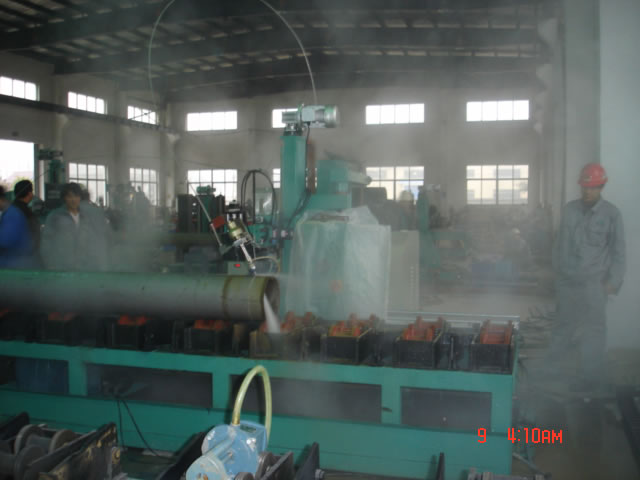

High Pressure Water Jet Cutting and Beveling Machine

Home » Products » Pipe Fabrication Cutting Equipment » High Pressure Water Jet Cutting and Beveling Machine

Model: BPWBM~24A

Features
1. The high pressure water jet cutting and beveling machine on-line performance is very good (designed as per the on-line equipment of the production line).
2. The beveling capacity is ≤4Min /pipe bevel (DN200 SCH40).
3. It offers bevel cutting of: cutting off pipe and with bevel simultaneously.
4. The high pressure water jet cutting and beveling machine offers good bevel quality.

Technical Parameters of the High Pressure Water Jet Cutting and Beveling Machine
Pipe Diameter Applicable: DN100~600(φ114~610)
Applicable Wall Thickness: 1~18 mm
Applicable Materials: Carbon steel, alloy steel, stainless steel, cryogenic steel and other materials
Cutting Length: 6350MM
Bevel Shape: V
Cutting Direction: Lengthwise
Roller Bench:
Structure: Three line roller with fixed distance
Roller Bed Length: 7000MM
Driving System: Servo motor + precision reducer
Rev: 0~2.5M/Min (VF stepless speed adjustment)
Material of the Roller Bench: Carbon steel packing with rubber
Rotation Accuracy: <2.0MM
Trolley System:
Trolley Travel: 6350MM (moving lengthwise)
Cutting Torch Travel: 700MM (up/down); 300MM (left/right)
Cutting With: High pressure water jet cutting
Water Cutting Angle: ±45° (adjustable)
Water Cutter Quantity: One piece of water jet tool
Angle Error: <2°
Length Fixing Accuracy: <2.0MM
Control System: High CNC Cutting System
Length-Measuring System: CNC length measuring which is included in the control system
Conveying System: Built in a conveying system equipped with a lifter; additionally, one set of conveying system can be provided for bevel cutting machine if necessary and conveying can be implemented manually or electrically
High Pressure Generator: Our OEM products which are famous in China (or as per customers' demands)
Pressure is Increased By: Liquid (by hydraulic system and feeding water)
Oil Pump Capacity: 90L/Min max
Nozzle Diameter: 0.3mm max
Highest Pressure: 380MPa
Continuous Water Pressure: 330MPa
Motor Power: 37KW

As a China-based high pressure water jet cutting and beveling machine manufacturer, we also supply CNC pipe profile cutting machine, pipe plasma beveling and cutting machine, piping fabrication fast fitting-up machine, pipe fabrication production line, and much more.
