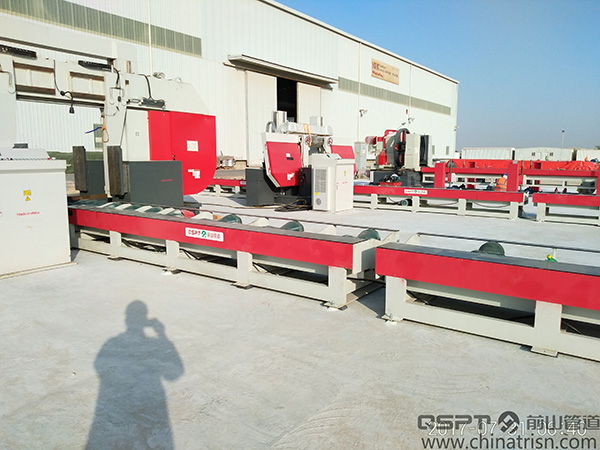

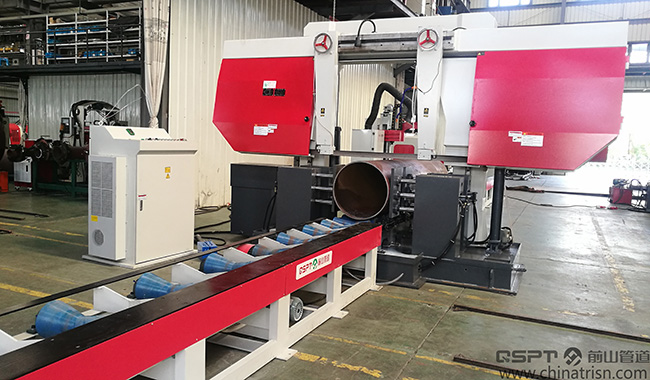

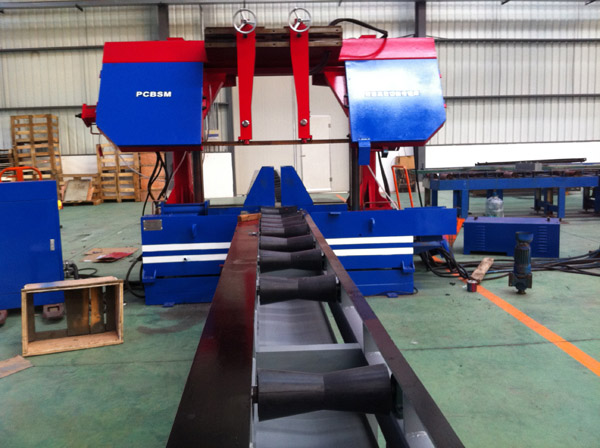

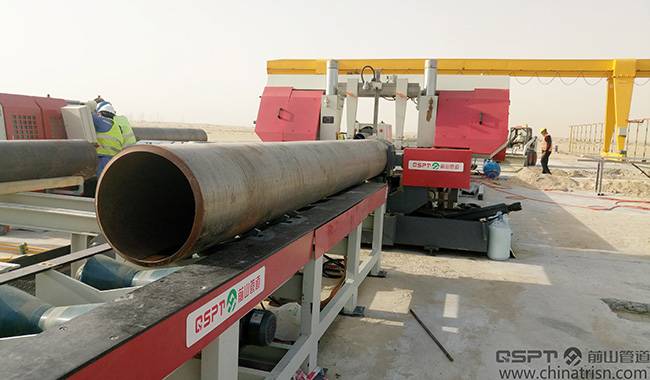

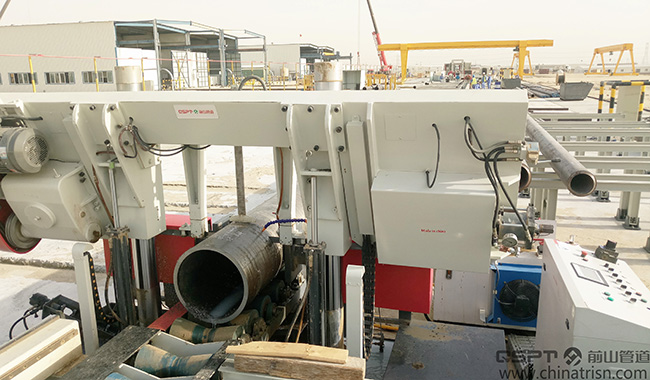

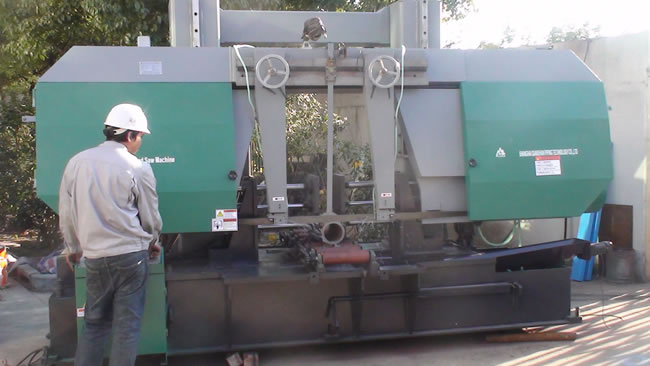

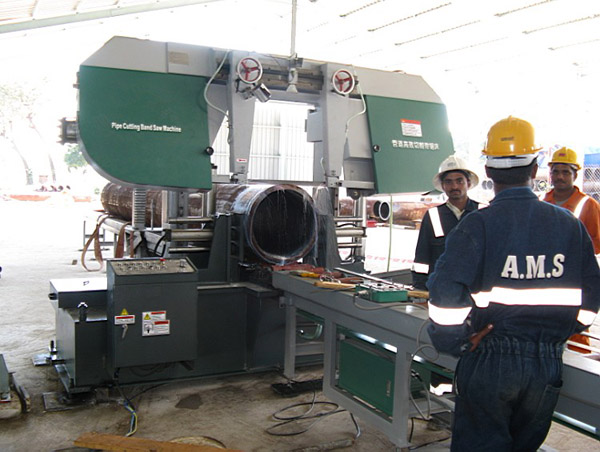

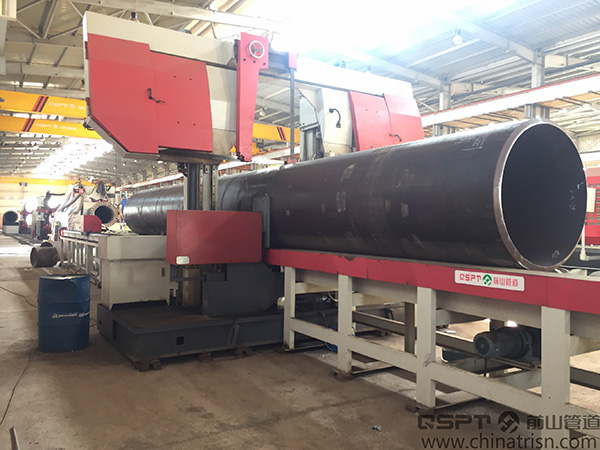

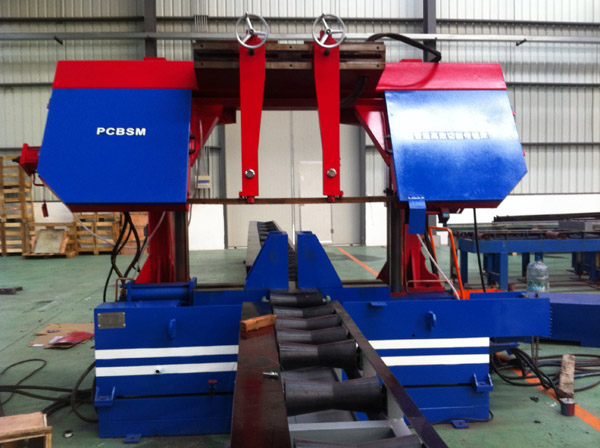

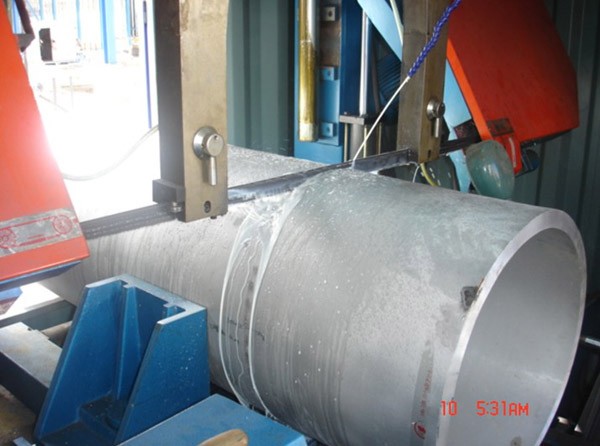

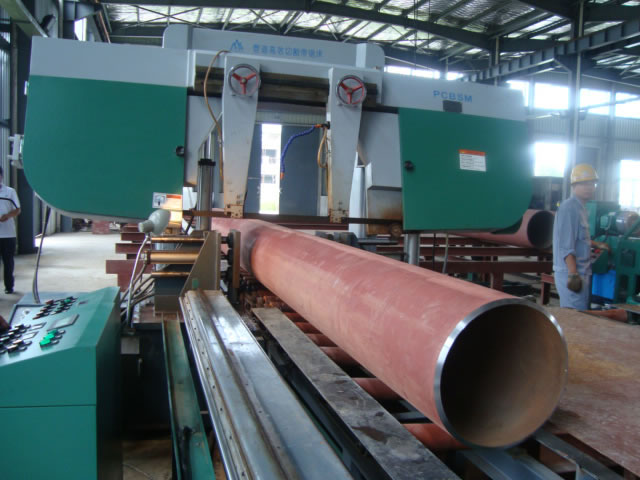

High Speed Pipe Cutting Band Saw Machine

Model: PCBSM-16Aa/24Aa/32Aa/40Aa/48Aa/60Aa

1. The high speed pipe cutting band saw machine offers good on-line performance (designed as per the one line equipment of the production line).
2. The cutting efficiency is ≤2Min /one pipeline bevel (DN200 SCH40).
3. The high speed pipe cutting band saw machine has good opening quality.

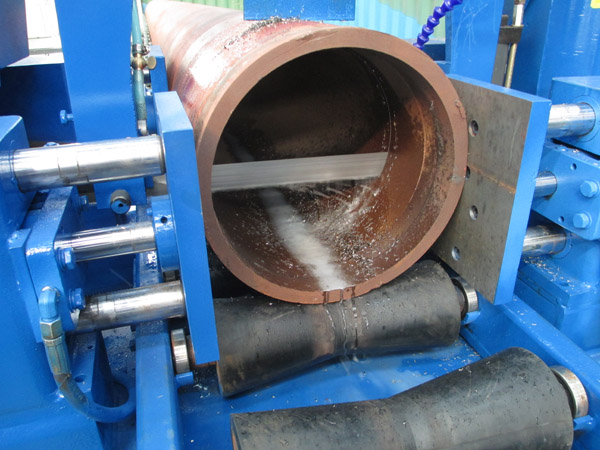

4: Rear mounted single pair clamp system; two-side synchronous clamping with hydraulic cylinders; built-in V-type roller centering conveying; VF stepless cutting speed control system; Auto cutting of single section of pipe after aligned with laser.

The high speed pipe cutting band saw machine is used for projects with a majority of standard wall thickness and heavy wall thickness.

Technical Parameters of the High Sped Pipe Cutting Band Saw Machine
Structure: Horizontal and with two columns, made special roller
Pipe Diameter Applicable: DN400/DN600/DN800/DN1000/DN1200/DN1500
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Feeding Speed: Stepless speed adjustment
Clamping Mode: Both sides centering clamping automatically by hydraulic cylinder
Band Saw Tension: Tensioning and loosen automatically by hydraulic
Cooling System: Built in coolant pump
Speed of the Band Saw: 18, 42 or 68 m/min/27, 52 or 78 m/min/15-80m/min
Size of the Band Saw: 4570X*34*1.1/6700X*41*1.3/8880*67*1.6
Dimension of Machine: 2300*1200*1650mm; 3600*1450*2100mm; 4550*1950*2600mm
Weight of Machine: 1500KGS; 5000KGS; 9000KGS (±5%)
Length-Measuring System: A mechanical length-measuring system can be provided if necessary to fix the length of the pipes as well as cut and bevel them with the supporting of the band saw conveying system
Conveying System: Cutting and beveling VF band systems driven by motor are equipped if necessary

As a China-based high speed pipe cutting band saw machine manufacturer, Qianshan supplies a broad range of products that includes a pipe flame beveling and cutting machine, high speed pipe cutting and beveling machine, pipe fabrication production line, automatic welding machine for root pass weld, and more.
