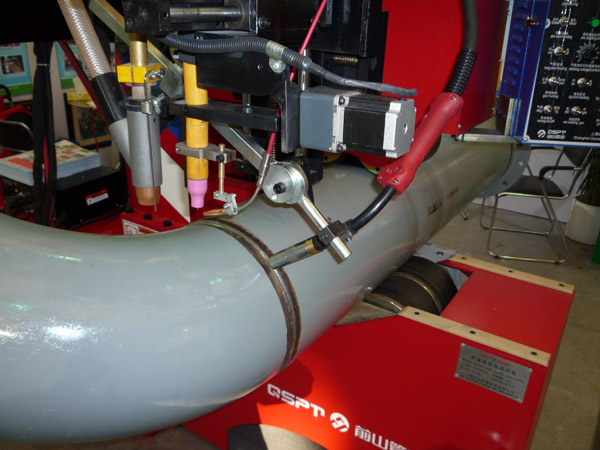

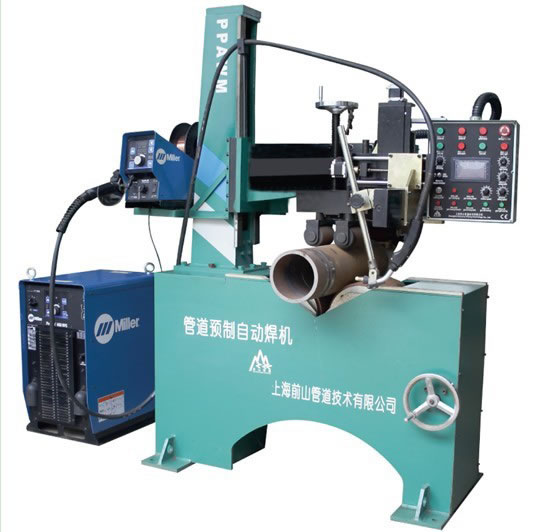

Automatic Welding Machine for Root Pass Weld

Model: PPAWM-24Aa/24Cb

Technical Parameters of the Automatic Welding Machine for Pipe Spool Root Pass Weld (GMAW/GTAW/FCAW)
Pipe Diameter Applicable: DN50-600 (φ60-610)
Pipe Wall Thickness Applicable: 3-30mm
Pipe Length Applicable: 400-8000mm (for pipe dia ≤400 mm, adopt to auxiliary method to welding)
Applicable Materials: Carbon steel, alloy steel , stainless steel and cryogenic steel
Welding Line Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc. (a fake pipe transition connection shall be applied if necessary)
Clamping System: Clamping arm move up and down by screw
Control System: PLC control and indication by text display

Oscillating System
Oscillating Mode: Adjustment by electric cross oscillator , drive by step motor
Adjustment Mode: Welding swing, swing around the frequency and left and right pause time, etc. by electric cross oscillator to adjustment of stepless
Adjustment Way: Swing parameter (welding swing, swing frequency and left and right pause time) use to button + digital display adjust way

Welding System
Adjustment Mode: Work piece rotation variable frequency, stepless adjustable (stable), cross arm stretch the length of electrical, stepless adjustable
Adjustment Way: Work piece Rev speed/welding speed adjustment using knob + digital way, cross arm of extending length of use of buttons

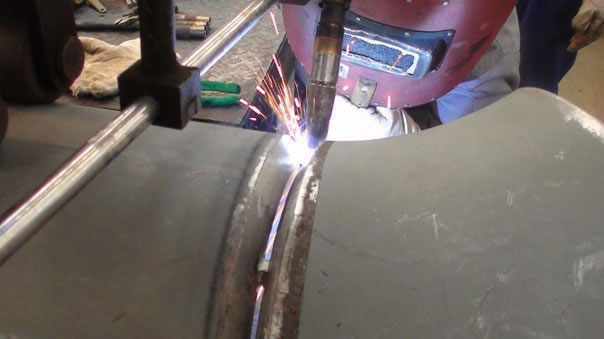

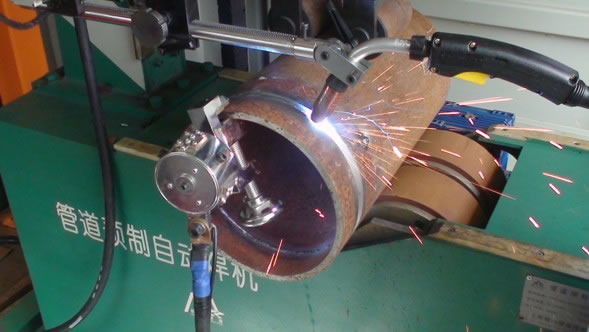

Welding Procedure: FCAW/GMAW/GTAW welding process for root pass welding
Welding Power: OEM products in China (or as per customers' demands)

As a China-based manufacturer of automatic welding machine for root pass weld, we provide not only pipe fabrication welding equipment, but also pipe fabrication conveying equipment, pipe fabrication cutting equipment, pipe fabrication beveling equipment, pipe fabrication production line, and other products.
