Parameters

Product type: PAAWM-00Aa
Automatic magnetic pulse pipeline welding machine is composed of power supply, wire feeding system, magnetic welding trolley and welding control system, etc.

Applicable pipe diameter: ≥DN100
Pipe thickness: 4-30
Applicable materials: CS, AS, SS and Cryogenic Steel
Applicable welding joint: Various pipe butt welding joint, such as pipe-pipe, pipe-elbow, pipe-flange, etc. .

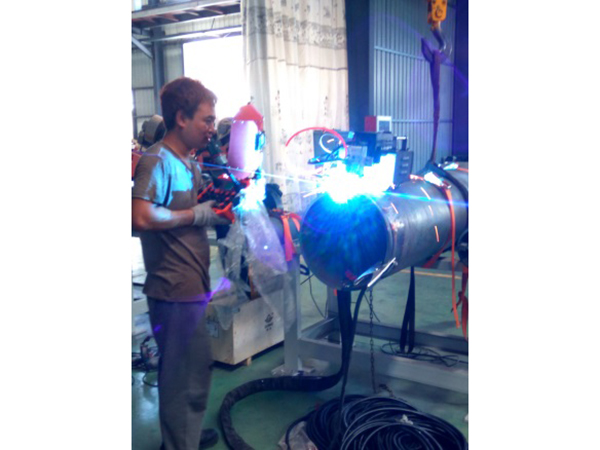

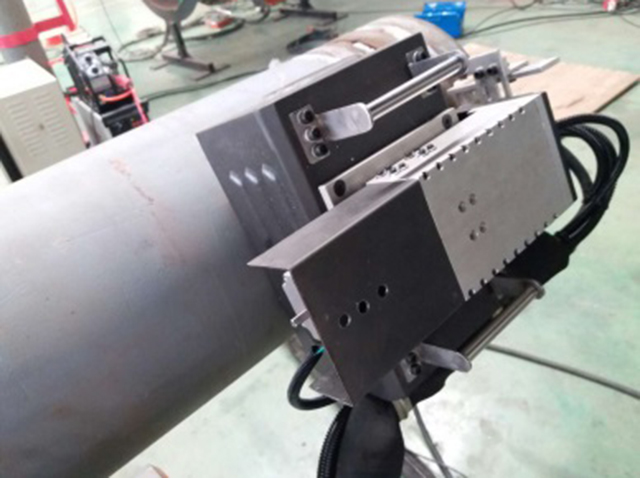

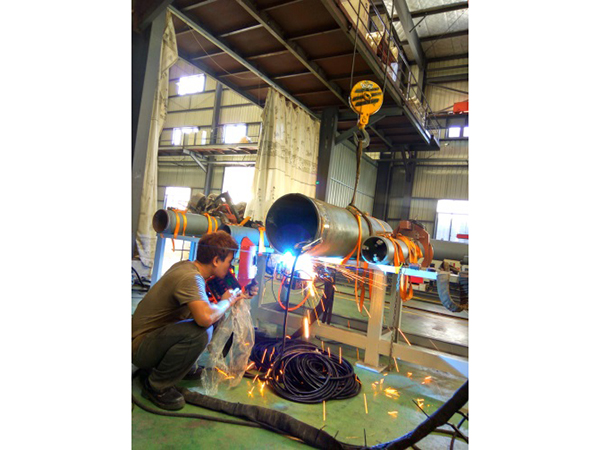

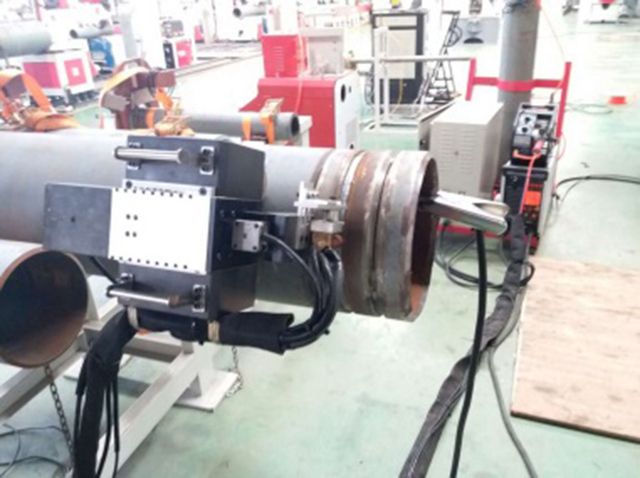

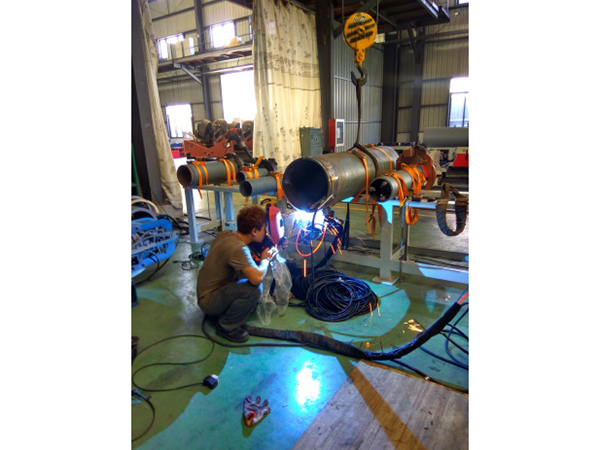

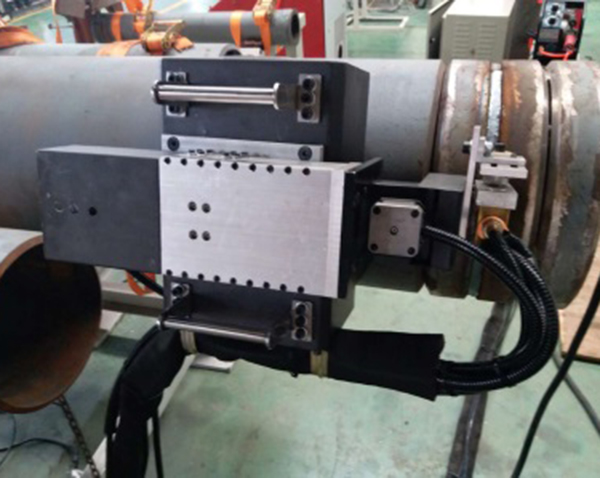

Magnetic welding trolley
Driving wheel: Magnetic wheel
Wheel set suction: 》50KG
Driving system: DC servo motor drive
Speed: 50-750MM/MIN, stepless speed control
Rotation accuracy: Rotating a cycle on the DN150-DN400 seamless tube with a center deviation less than 0.5MM
Driving impulse: When rotating downward on the seamless pipe, the driving impulse is less than 0.5mm.
Adjustment system: As our patented product, welding torch stepper motor is used to adjust the position to right and left, up and down.
Oscillating system：As our patented product, welding torch stepper motor adjusts the oscillation to right or left.

Features

The workpiece (pipe) is fixed. Welding trolley around the workpiece rotates to achieve full-position automatic welding of pipeline.
Welding process: Automatic magnetic pulse pipeline welding machine uses high-efficiency and low-cost gas to protect welding.

Features: It is suitable for filling & final welding of fixed weld for long distance pipeline construction or site installation; carbon steel pipeline welding require no guide rail, the magnetic wheel automatically adsorbs and crawls on the pipeline; trolley with stepless rotational speed control; the welding torch can swing in the axial direction of pipe; the welding torch can be adjusted in angle axially along the pipe; the welding torch can be adjusted in angle axially perpendicular to the pipe; the welding torch can be adjusted radially up and down along the pipe; standard configuration: HiArcM500A welding power supply; solid welding wire + mixed gas & downhill welding, flux-cored wire + mixed gas & uphill welding.
