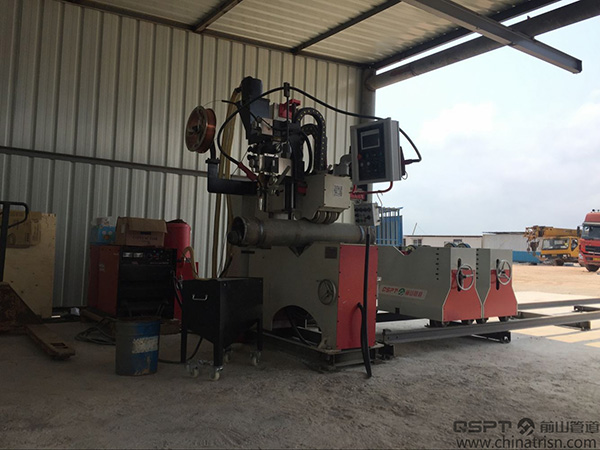

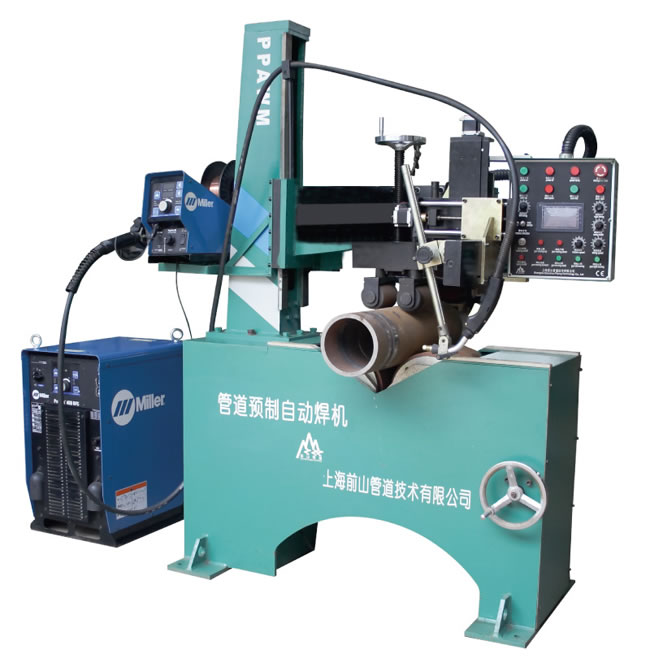

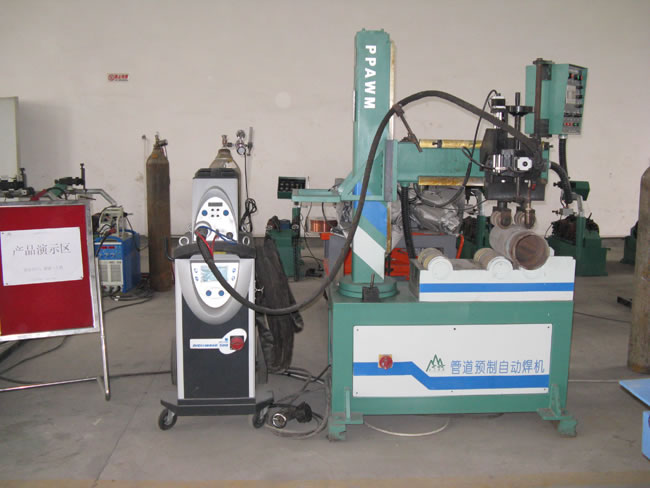

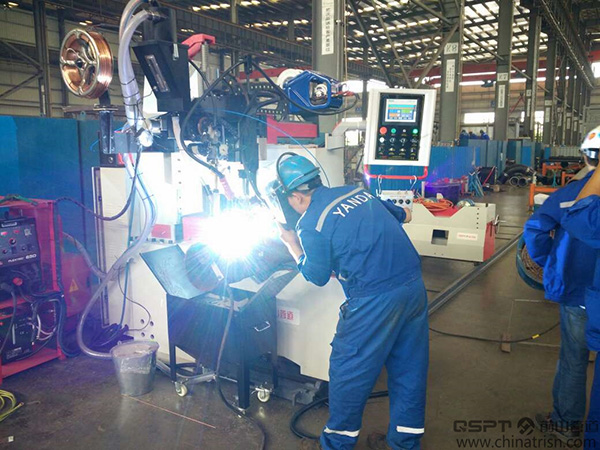

Automatic Pipe Welding Machine

Model: PPAWM-24Aa/32Aa

Features
1. The automatic pipe welding machine high welding capacity (250-350 inch/day).
2. The machine is easy to operate.
3. The automatic pipe welding machine offers excellent surface finishing.
4. It offers welding qualification rate: (without re-working for the skilled operator).
5. The automatic pipe welding offers good driving reliability. However, driven by frictional force, it is required to set essential balance weight to offset large bending moment caused by elbows for large diameter pipe, or providing a chain tensioner to improve the reliability of the driving.

Applications
The automatic pipe welding machine is used for backing welding or welding the pipes or the cover of aluminum alloy pipes which need higher quality.

Technical Parameters of the Automatic Pipe Welding Machine (MIG)
Pipe Diameter Applicable: DN50~600(φ60~610); DN200-800(φ219-813)
Pipe Wall Thickness Applicable: 3~30MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Welding Line Applicable: Various butt welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc. (a fake pipe transition connection shall be applied if
necessary)
Driving System: : Driven by three line stainless steel roller and turbine worm or driven by two line rubber roller and reducer
Clamping System: Clamping arm moves up and down electrically and clamps by screw manually/clamping arm moves up/down electrically and clamps by screw
Bracket System: Separate type of trolley matching for welding equipment which may be adjusted along the track according to the length of the pipeline
Counterweight System: No counterweight
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Electric cross regulator
Oscillating System: A product of our patented technology
Control System: A product of our patented technology, PLC control

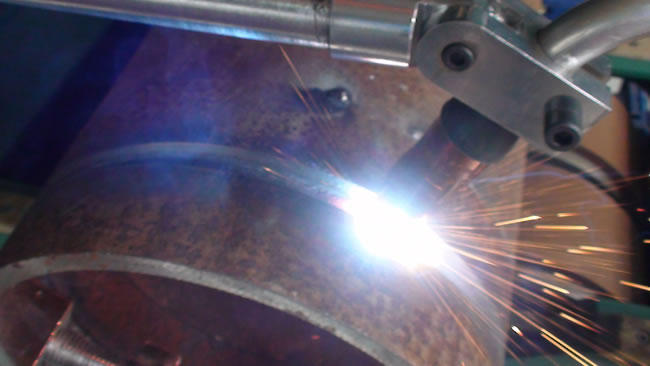

Welding Procedure: MIG/GMAW (can do root pass, filling, and final welding)
Welding Power: SAF-PRO DIGI@WAVE500 OR MILLER /LINCOLN (As per customer's demand)

As a China-based automatic pipe welding machine manufacturer, Qianshan provides a vast range of products that includes our automatic piping welding machine, pipe plasma beveling and cutting machine, piping fabrication fast fitting-up machine, high speed pipe end beveling machine, and more.
