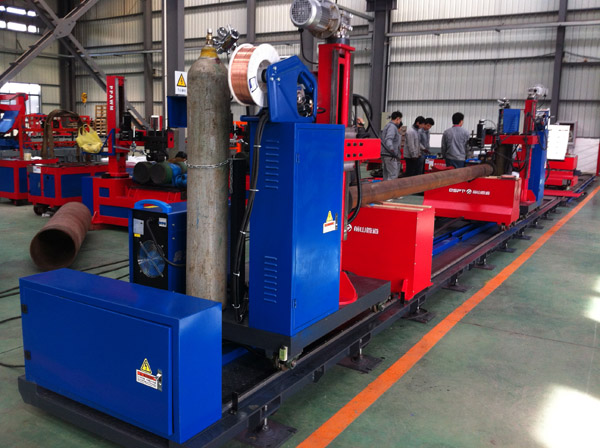

Automatic Slip-On Flange Welding Machine

Model: PPAWM-24Da/32Da

Features
1. The automatic slip-on flange welding machine offers excellent welding capacity (250-350 inch/day).
2. The machine is easy to operate.
3. The automatic slip-on flange welding machine offers excellent surface forming.
4. It offers a welding compliance rate (without re-working for the skilled operator).
5. The automatic slip-on flange welding offers good driving reliability.

Applications

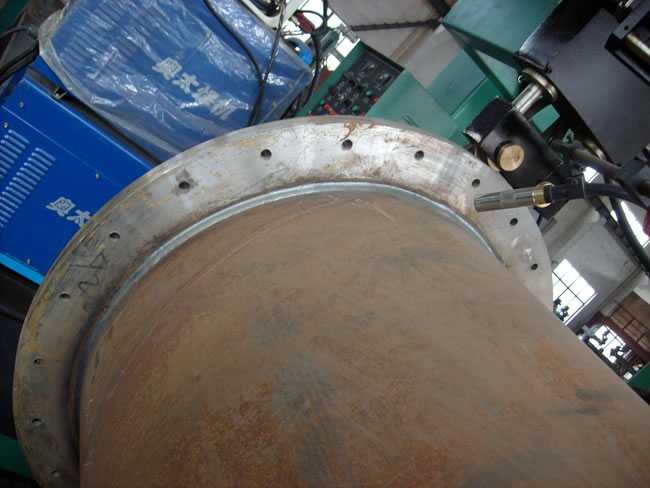

Slip-on flange for the welding of the internal and external incidence angle

Technical Parameters of the Automatic Slip-On Flange Welding Machine (FCAW/GMAW)
Pipe Diameter Applicable: DN100-600(φ114-610)/DN100-800(φ114-813)
Pipe Wall Thickness Applicable: 3-30MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Welds Applicable: Welding line of flange pipe

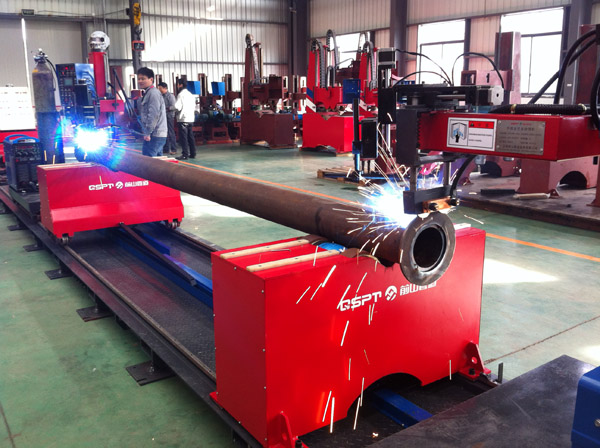

Machine Head System: One welding head with two welding guns at one end/two welding heads with four welding guns both at two ends
Driving System: Driven the motor of active idler wheel frame
Clamping System: Clamped by chain or contact roller
Bracket System: Two sets of active idler wheel frame are to be set and it is adjustable according to the pipe length along the track
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Electric cross regulator
Swaying System: A product of our patented technology, driven by step motor and oscillating adjusting with digital display
Control System: A product of our patented technology, PLC control
Welding Procedure: FCAW/GMAW (or as per request)
Welding Power: OEM products in China (or as per customers' demands)

We are a professional automatic slip-on flange welding machine manufacturer based in China. At Qianshan we also provide automatic portable piping welding machine, axial pipe end beveling machine, pipe plasma beveling and cutting machine, pipe prefabrication conveying system, and more.
