Model: SPFPL-16Aa/24Aa

Features

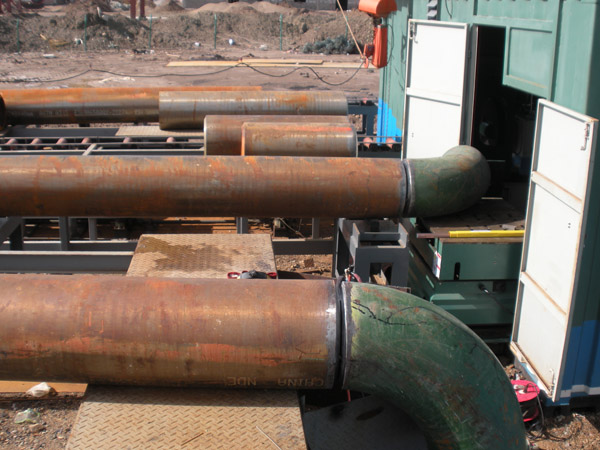

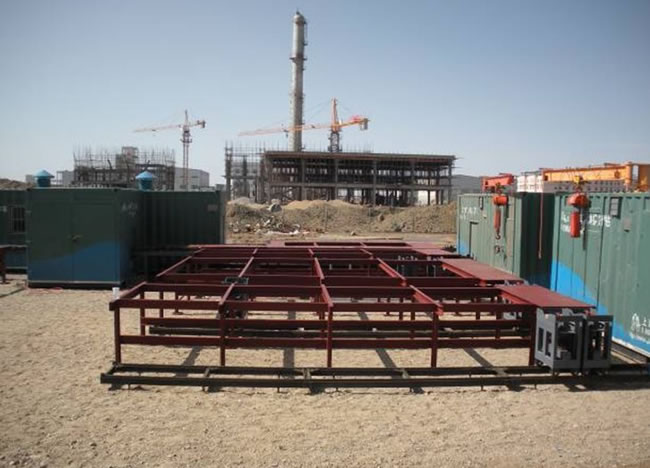

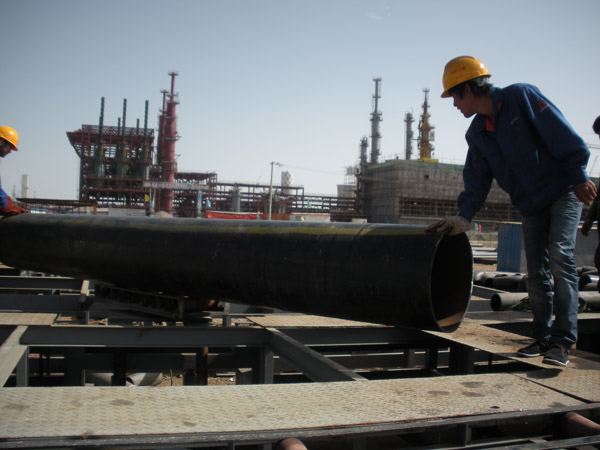

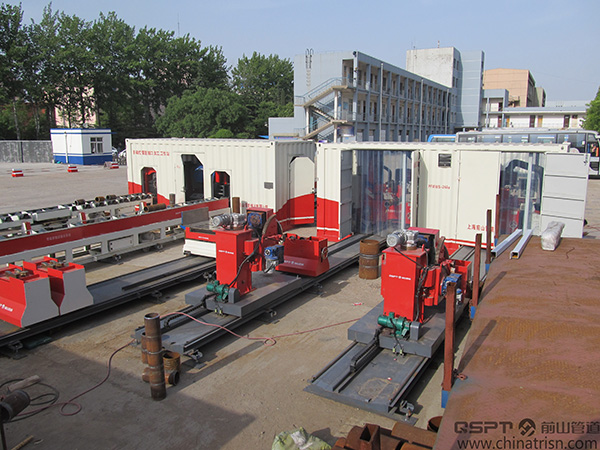

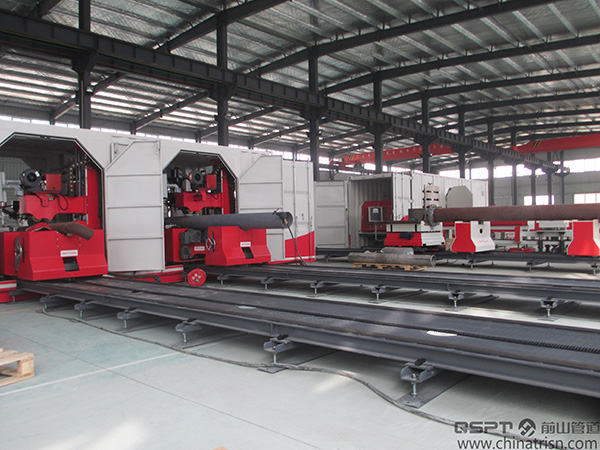

1. The basic configuration of the pipe fabrication production line consists of many sets of pipe cutting and bevel machining workstation, many sets of mechanical fitting-up workstation, many sets of piping automatic welding workstation, a set of conveying system and a set of steel structure pipe racks.
2. The pipe fabrication production line offers high production efficiency - hoisting with cantilever crane, beveling with pipe bevel machining workstation and welding with piping automatic welding workstation.

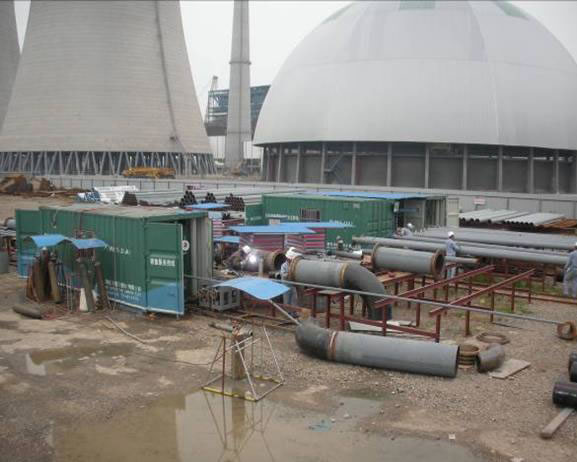

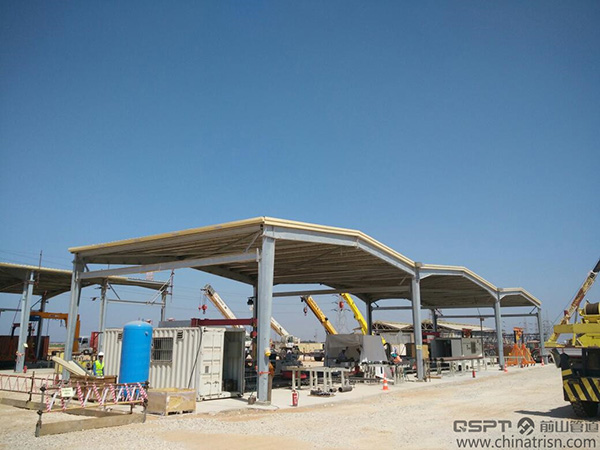

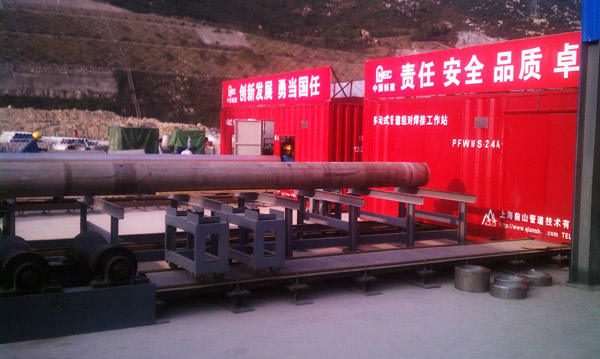

3. It offers excellent equipment mobility without the limitation of radiation radius by using container as carrier.

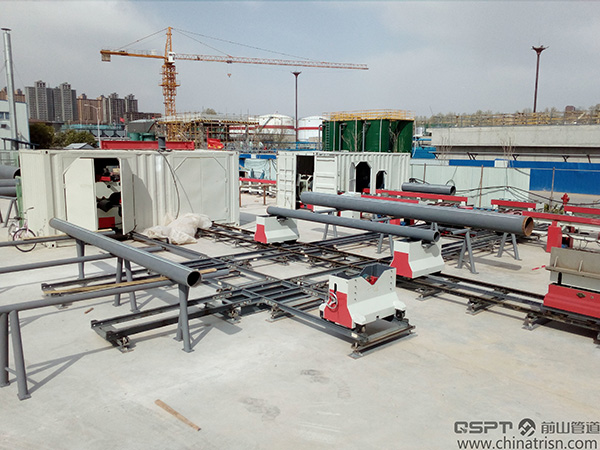

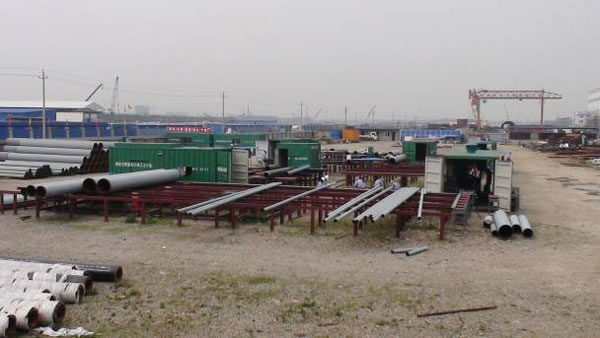

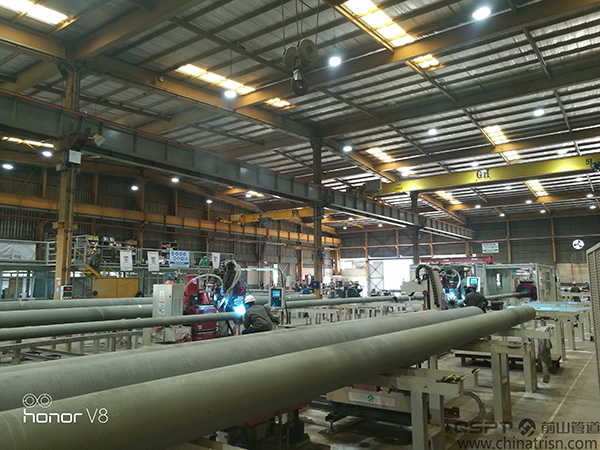

4. Utilized the local place on project site; Using PDSOFT Pipe Fabrication Detail Design Software for designing spool pieces; Using PDSOFT Pipe Fabrication Process Management Software to elaborate management with high efficiency; Using CNC cutting & beveling equipment for high quality mechanical beveling; Using fitting-up machine for fast spool pieces fit-up; Using Split type Pipe Fabrication Automatic Welding Machine for high-efficiency high-quality MIG root welding with QSPT’s technology; Using SAW for high efficiency cap welding; configure with adequate numbers of conveying systems capable of longitudinal/lateral conveying to ensure safe and reliable ground conveying.

Applications
The pipe fabrication production line is used on piping projects all over the country where the total amount of work is on a smaller scale.

Technical Parameters of the Pipe Fabrication Production Line (Transportable Type)
Production Capacity: 20-80 thousands diameter-inch/month (or depending on workshop area and equipment configuration or as per request)
Pipe diameter applicable: DN400/DN600
Pipe Thickness: 3-80MM
Conveying Speed: 2-20M/Min
Beveling Speed: ≤5Min/Two Bevels (DN200 SCH40)
Automatic Welding Rate: ≥60%
Prefabrication Ratio: 50%~80%
Design Software: PDSOFT 3Dpiping
Management Software: PDSOFT SPFMS

We are a professional pipe fabrication production line manufacturer based in China. We offer various types of products such as a high speed pipe cutting and beveling machine, piping fabrication fast fitting-up machine, CNC pipe profile cutting machine, and mechanical piping fitting-up workstation.
