Pipe Fabrication Production Line

Model: NPPPL-24A

Features

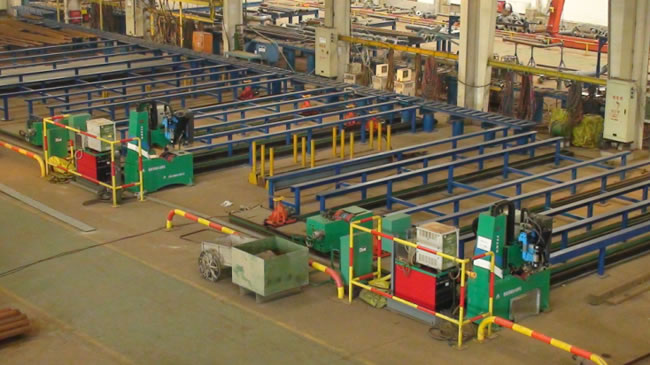

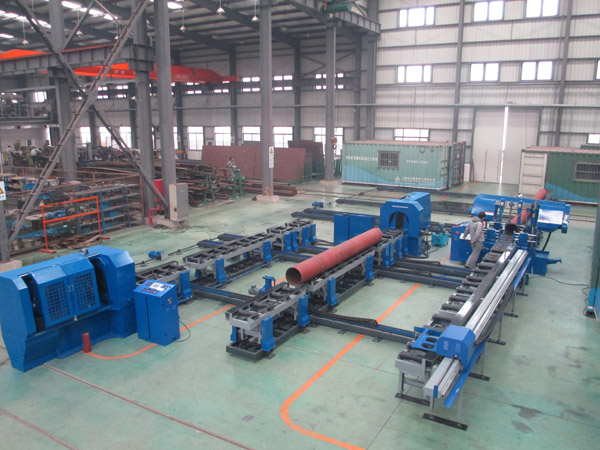

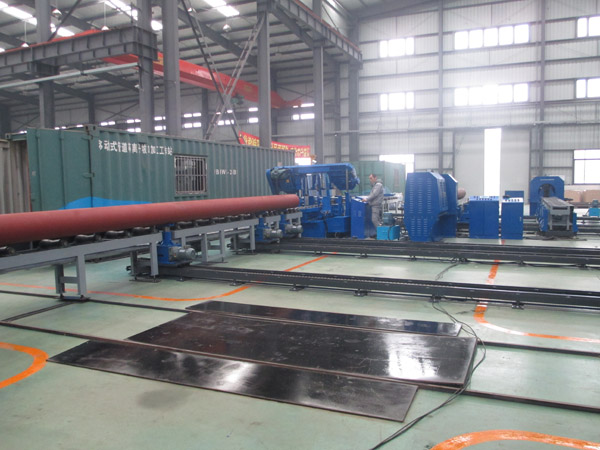

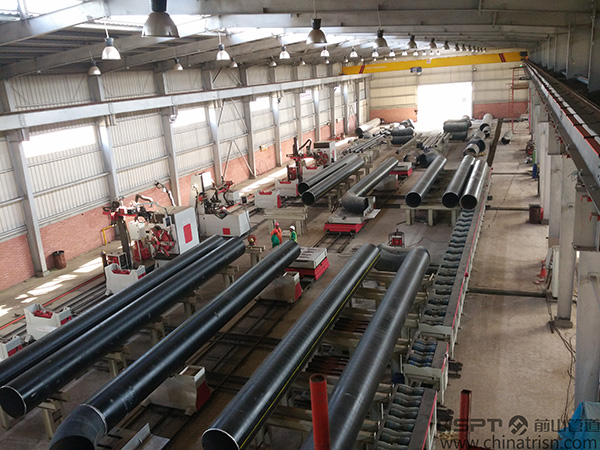

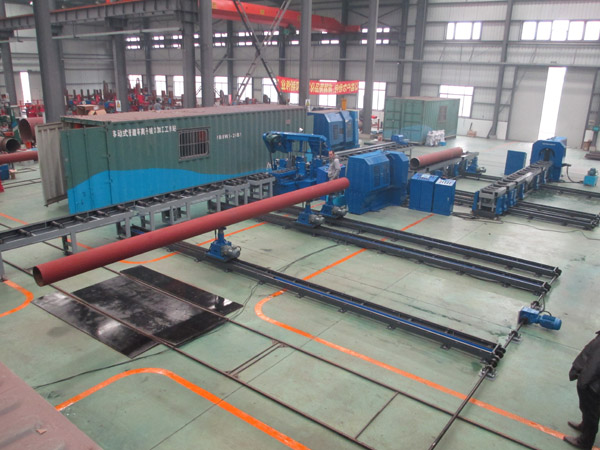

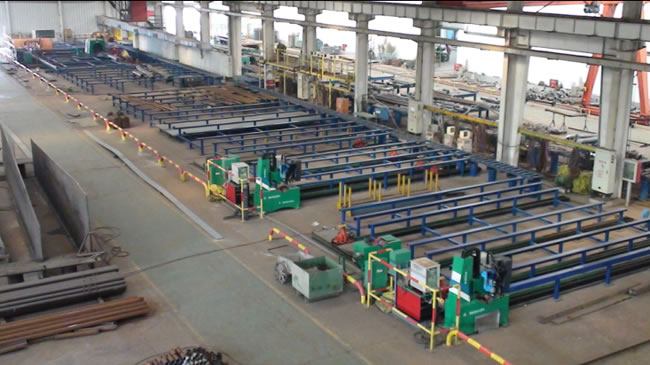

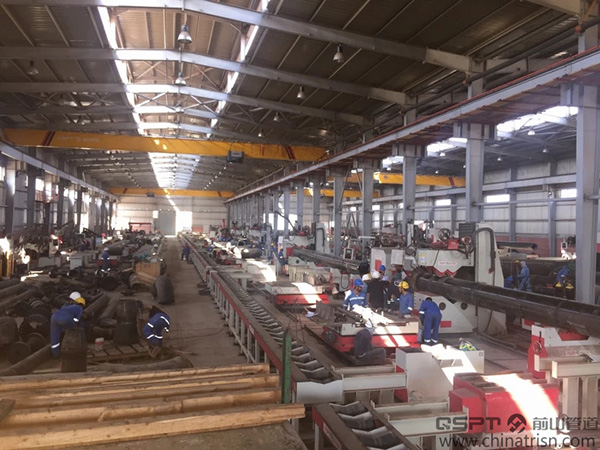

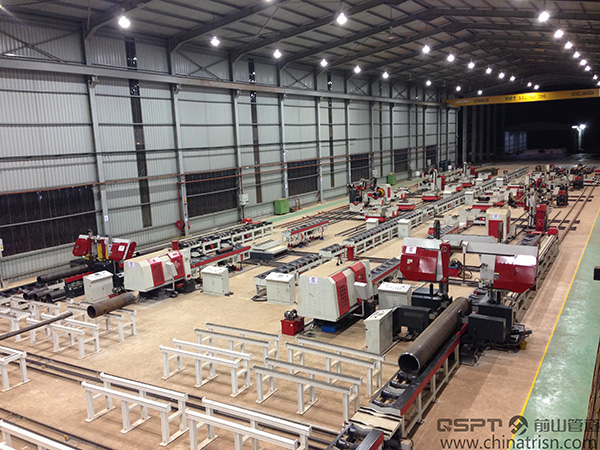

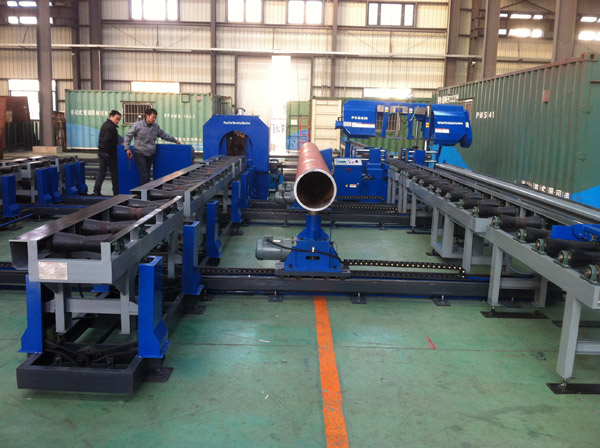

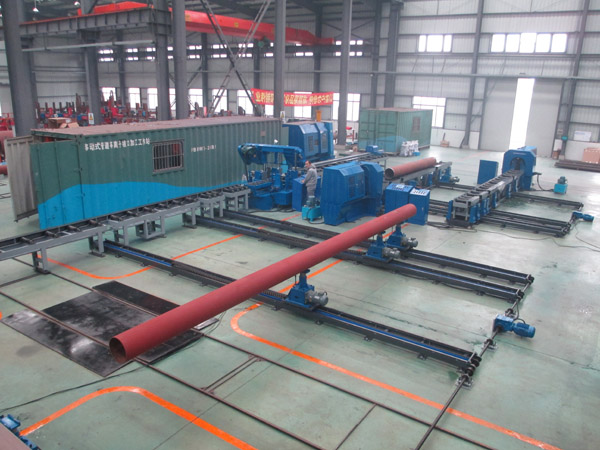

1. The basic configuration of the pipe fabrication production line consists of one set of fixed-type high speed pipe cutting and beveling machine(plc), one set of roller-bench-type pipe plasma cutting and beveling machine(nc), one set of high speed pipe cutting band saw machine + two sets of fixed-type pipe end beveling machine(plc), many sets of piping prefabrication fast fitting-up machine, many sets of piping prefabrication automatic welding machine or piping cantilever automatic welding machine, many sets lateral transport system, a set of longitudinal transport system, a set of piping prefabrication marking system, a set of real time manufacturing monitoring system, a set of real time data acquisition system and a set of steel structure pipe racks.

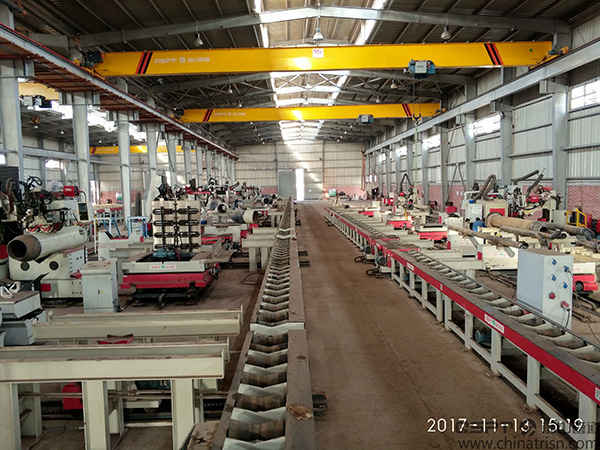

2. The pipe fabrication production line offers excellent production efficiency - hoisting with overhead traveling crane, beveling with high speed pipe cutting and beveling machine and welding with automatic welding machine.
3. The equipment cannot be easily moved.

Applications
This numerical control type pipe fabrication production line is used for pipe projects or piping prefabrication projects are within 500KM from the center of the workshop.

Technical Parameters of the Pipe Fabrication Production Line (Numerical Control Type)
Production Capacity: 20-150 Thousands Diameter-Inch/Month (or depending on workshop area or equipment configurations)
Pipe Diameter: DN50-600 (φ60-610mm)
Pipe Thickness: 3-80MM
Conveying Speed: 2-20M/Min
Beveling Speed: ≤5Min / Two Bevels (DN200 SCH40)
Automatic Welding Rate: ≥60%
Prefabrication Ratio: 50%~80%
Design Software: PDSOFT 3Dpiping
Management Software: PDSOFT SPFMS

As an experienced pipe fabrication production line manufacturer and supplier based in China, at Qianshan we also provide pipe fabrication cutting equipment, pipe fabrication fitting-up equipment, pipe fabrication beveling equipment, pipe fabrication conveying equipment, and more.
