Model: PBMWS-12A

Features

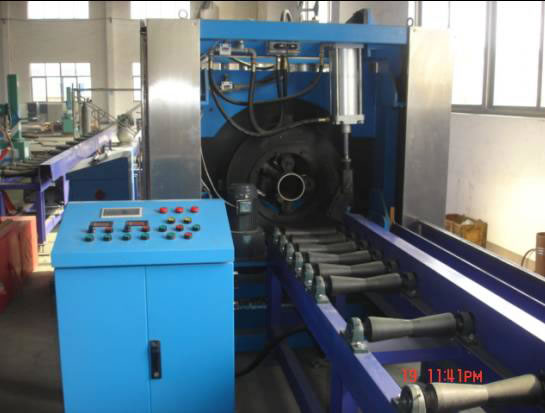

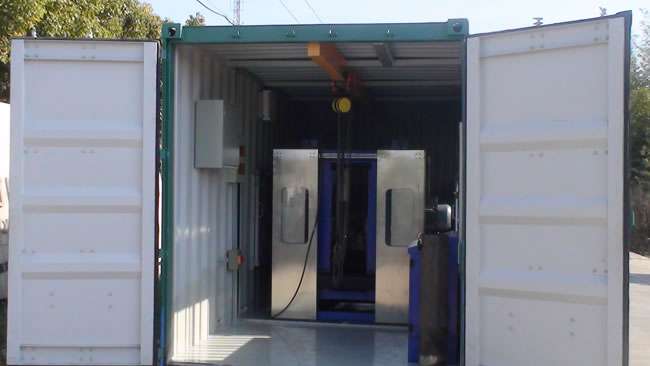

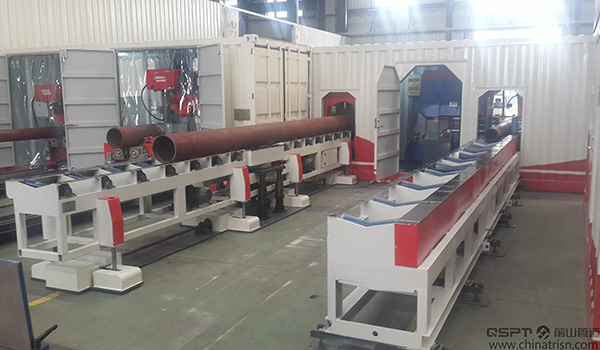

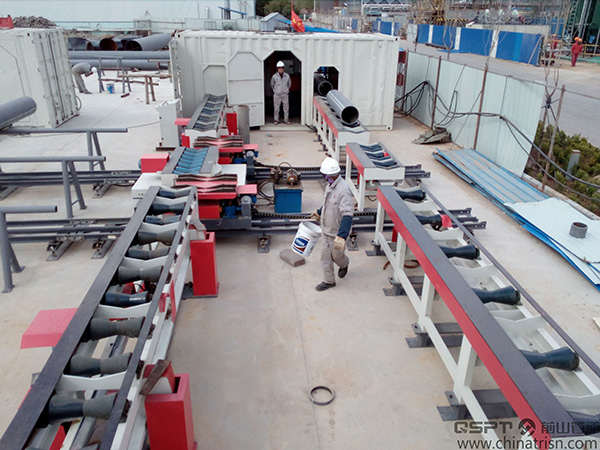

1. The basic configuration of the pipe cutting and beveling workstation consists of one 6m container with special retrofit, one set of fixed-type high speed pipe cutting and beveling machine, one set of conveyer system for cutting and beveling machine, one set of mechanical cutting length-measuring system (option), and two sets of cantilever cranes(option).
2. The production capacity of the pipe cutting and beveling workstation is ≤5Min /two bevels (DN200 SCH40).
3. It offers excellent mobility (without limitation of radiation radius by using container as carrier).
4. The bevels quality is excellent.

Applications
The pipe cutting and beveling workstation is used for edge preparation of standard thickness pipes.

Technical Parameters of the Pipe Cutting and Beveling Workstation (Type-A)
Pipe Diameter: DN50-300(φ60-325mm)
Pipe Thickness: 3-12M
Pipe Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Cutting Length: 8000MM
Type of Bevel: V
Max. Hoisting Weight: 1 ton
Control System: PLC control with touch screen (Human-machine interface)
Conveying System: Logistics conveyer system for cutting and beveling equipment with motor drive and frequency converter speed control
Length-Measuring System: Control system of definite length measuring cutting for pipes combined with conveyer system (option)

As a professional pipe cutting and beveling workstation manufacturer in China, we also offer mechanical piping fitting-up workstation, high speed pipe end beveling machine, piping fabrication fast fitting-up machine, pipe automatic welding machine and Piping Plant Design Software and Management Software System, etc.
