Pipe Cutting and Beveling Workstation

Model: PBPWS-16Ca/24Ca

Features

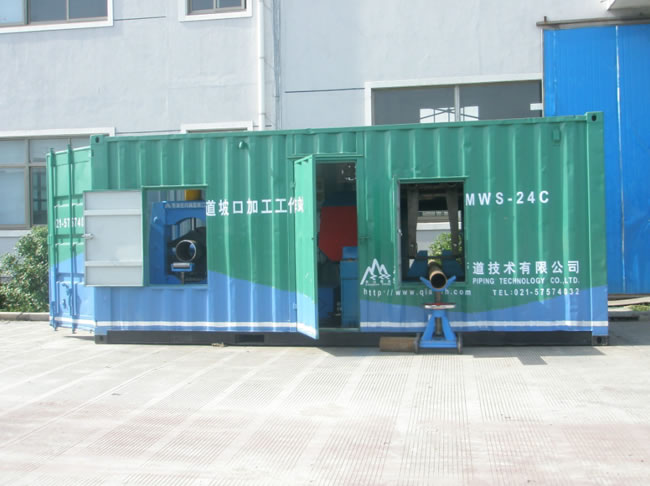

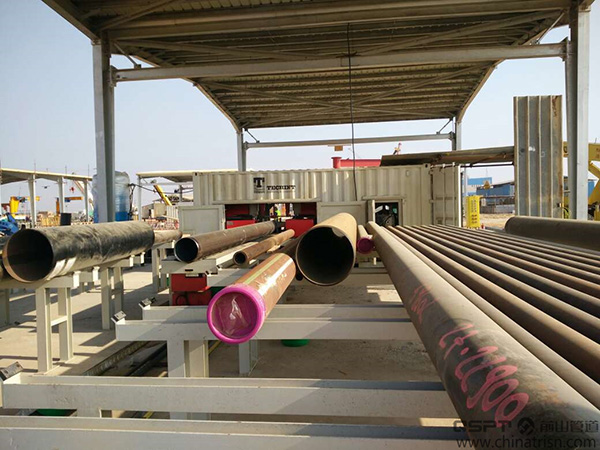

1. The basic configuration of the pipe cutting and beveling workstation consists of one set of 6m container made with special retrofit, one set of high speed pipe cutting band saw machine, one set of fixed-type high speed pipe end beveling machine; three sets of bracket supporting trolley or three sets of rail and trolley conveying system or one set of roller conveying system for band saw machine +1 set of conveying system for end beveling machine, and 1 set of piping cantilever crane (option).
2. The production capacity of the pipe cutting and beveling workstation is cutting speed: ≤2 min / pipe, and beveling speed: ≤5 min / pipe bevel (DN200 SCH40).
3. It offers excellent mobility (without limitation of radiation radius when using container as carrier).
4. The bevel quality is good.

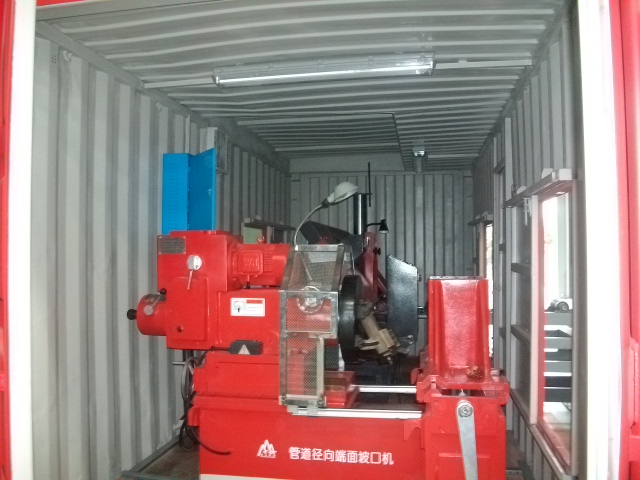

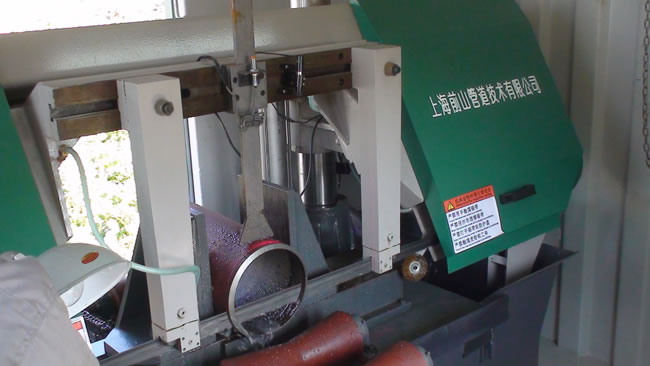

5. Classical type; Specialized field work station. CNC cutting to length; Beveling quality reaches cold machining level; Suitable for beveling all kinds of pipes, especially stainless steel pipes and thick-wall pipes. Equipped with: one specially retrofitted 6M container + one High Speed Pipe Cutting Machine/CNC Pipe Cutting Band Saw Machine + one High Speed Pipe End Beveling Machine/CNC Pipe End Beveling Machine.

Applications
The pipe cutting and beveling workstation is used for cutting and beveling of the pipes with heavy wall thickness.

Technical Parameters of the Pipe Cutting and Beveling Workstation (Type C)
Pipe Diameter Applicable: DN400/DN600
Pipe Wall Thickness Applicable: 4~90/5~180MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Cutting Length: Unlimited
Bevel Shape: U, X, V and double Vs, etc.
Max. Lifting Weight: 1 ton

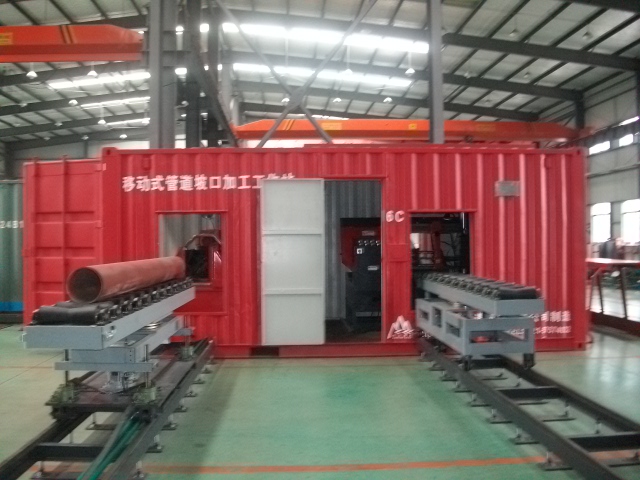

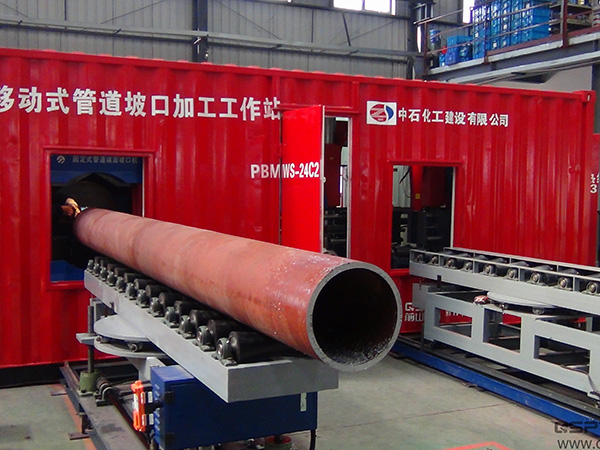

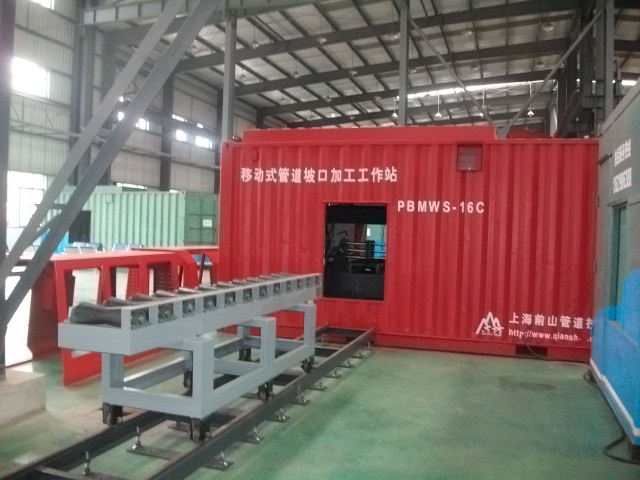

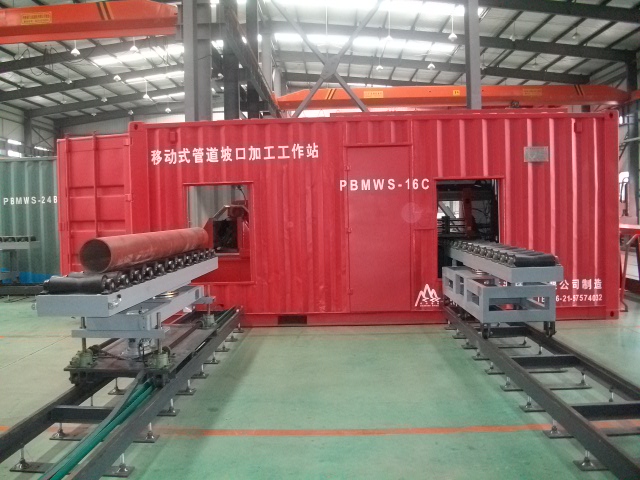

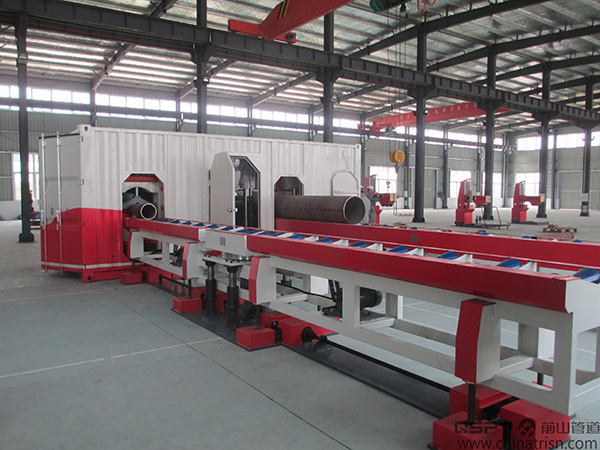

Conveying System: Each bracket supporting trolley is provided both at the pipe input and output side of the band saw machine; a crane is used to get the pipes in or take them out; a bracket supporting trolley is provided at the feed in/out end of the beveling machine and gets the pipes in or takes them out of the bracket and beveling machine by crane truck or cantilever crane. A rail and trolley conveying system or a pipe roller conveying system for end beveling machine with a lifter shall be mounted in front of the beveling machine to automatically adjust the elevation of the pipes to bevel the pipes of different diameters if required; or two rail and trolley conveying system or a set of roller conveying system for band saw machine can be equipped for feed in end or feed out end of the band saw machine.
Length-Measuring System: A mechanical pipe cutting length-measuring system can be provided if necessary to measure the length of the pipes as well as cut and bevel them in cooperation with the roller conveying system (option).

We are a professional pipe cutting and beveling workstation manufacturer based in China. We offer pipe fabrication workstation, pipe fabrication fitting-up equipment, pipe fabrication beveling equipment, pipe fabrication welding equipment, pipe fabrication conveying equipment, and much more.
