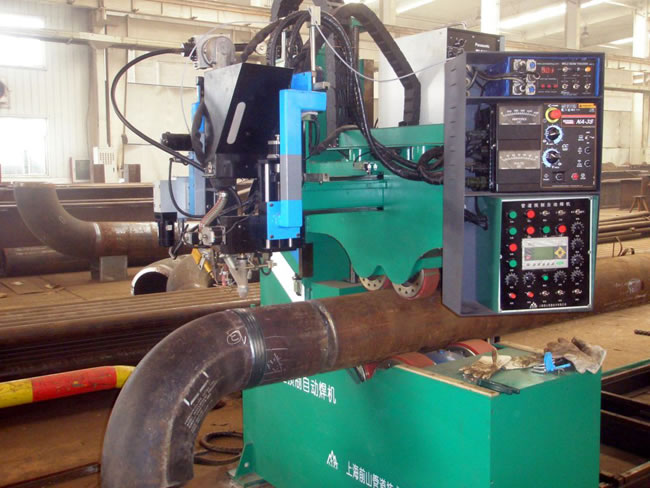

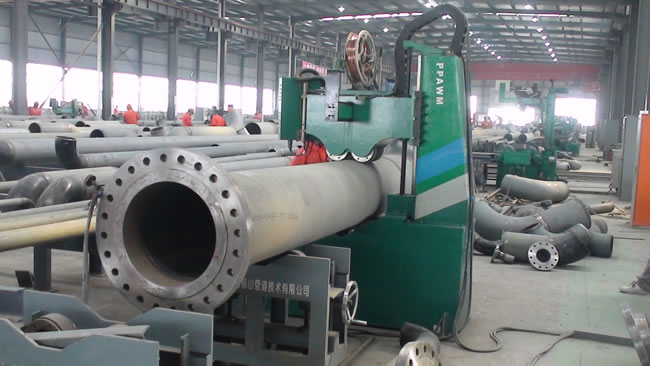

Automatic Piping Welding Machine

Model: PFAWM-24Ae/32Ae/48Ae/64Ae

1. The automatic piping welding machine offers excellent welding efficiency (400-600 inch/day, which is four times higher than manual welding).
2. The machine is easy to operate.
3. The automatic piping welding machine offers a good surface finishing.
4. It offers a welding compliance rate (without re-working for the skilled operator).
5. The automatic piping welding offers good driving reliability (driven with friction; the necessary balance weight shall be provided for the pipe with DN≥600 and which the wall thickness is ≥40 to balance the serious eccentricity resulting from bending).
6. The most sturdy model for welding thick-wall pipes; suitable for large batch of heavy wall thickness pipe fabrication; two sets of polyurethane coated driving wheels (two pcs per set, totally four pcs); driven by motor and reducer; two sets of polyurethane coated pressure roller (two pcs per set, totally four pcs); pressing by external screw lifting mechanism; built-in driving wheel and driving system; fast positioning weld with longitudinal telescopic boom; standard configuration: Lincoln Flextech650 multi-function welding power; streamlined welding control cabinet + aluminum alloy control box; the preferred equipment for thick-wall pipe welding

The automatic portable piping welding machine has broad use for pipe and cover welding of various structures of in various industries.

Technical Parameters of the Automatic Piping Welding Machine (SAW, Heavy Wall Thickness)
Pipe Diameter Applicable: DN600/DN800/DN1200/DN1600
Pipe Wall Thickness Applicable: 10-60mm
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Welds Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc. (a fake pipe transition connection shall be applied if necessary)
Driving System: Two rows of metal + rubber compound idler wheel driven by motor
Clamping System: Clamping with double chain clamping mechanism/clamping with boom clamping mechanism
Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipeline
Speed Regulation Mode: VF stepless speed control system
Control System: A product of our patented technology
Welding Procedure: SAW
Welding Power: OEM products in China (or as per customers' demands)

Qianshan is a professional automatic piping welding machine manufacturer and supplier based in China. We offer pipe fabrication welding equipment, pipe fabrication production line, pipe fabrication fitting-up equipment, pipe fabrication beveling equipment and pipe fabrication conveying equipment.
