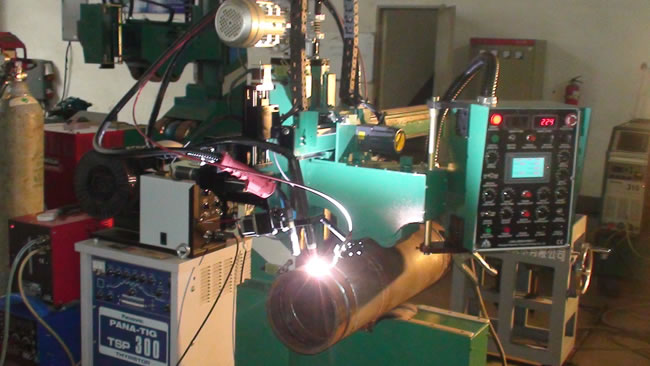

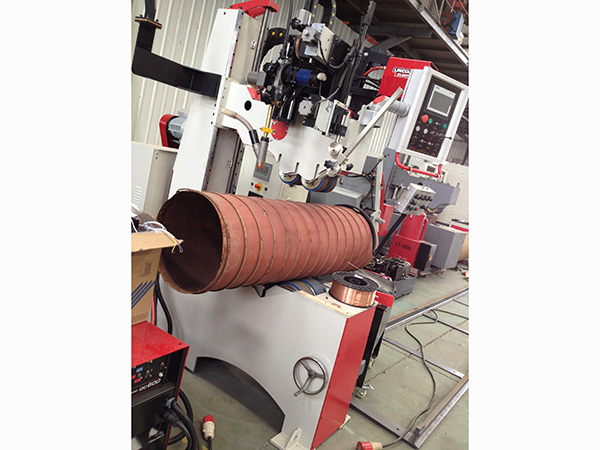

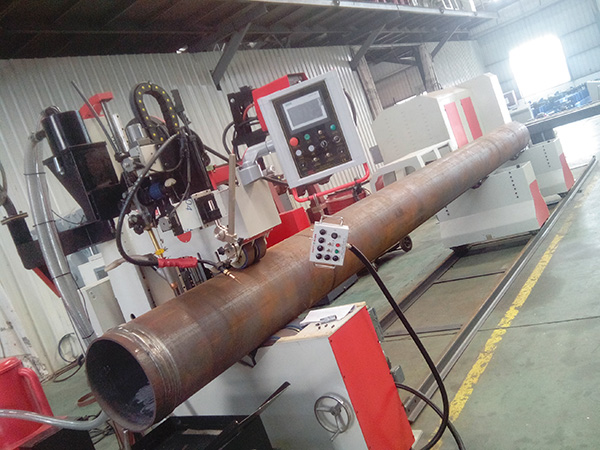

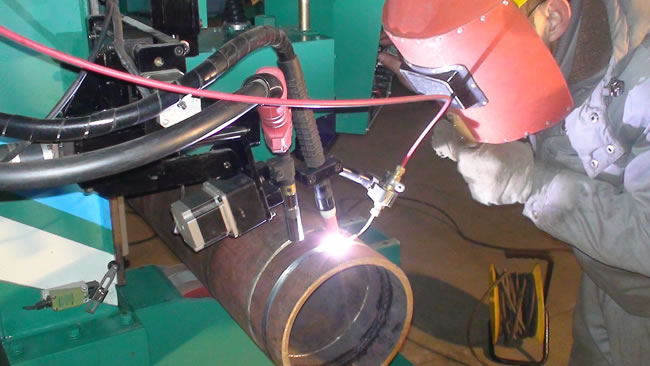

Automatic Pipe Welding Machine

Model: PPAWM-24Cb/32Cb

Features
1. The automatic pipe welding machine offers high welding capacity (100-250 inch/day).
2. The machine is easy to operate.
3. The automatic pipe welding machine offers excellent surface finishing.
4. It offers a welding compliance rate (without re-working for the skilled operator).
5. The automatic pipe welding offers good driving reliability. However, driven by frictional force, it is required to set essential balance weight to offset large bending moment caused by elbows for large diameter pipe, or providing a chain tensioner to improve the reliability of the driving.

Applications
The automatic pipe welding machine is used for backing welding or welding the pipes or the cover of the aluminum alloy pipes which need higher quality.

Technical Parameters of the Automatic Pipe Welding Machine (GTAW)
Pipe Diameter Applicable: DN50~600(φ60~610); DN200-800(φ219-813)
Pipe Wall Thickness Applicable: 1-10MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Welds Applicable: Various butt welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc. (a fake pipe transition connection shall be applied if
necessary)
Driving System: Driven by three line stainless steel roller and turbine worm or driven by two line rubber roller and reducer
Clamping System: Clamping arm moves up and down electrically and clamps by screw manually/clamping arm moves up/down electrically and clamps by screw
Bracket System: Separate type of trolley matching for welding machine which may be adjusted along the track according to the length of the pipeline
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Electric cross regulator
Oscillating System: A product of our patented technology
Control System: A product of our patented technology, PLC control
Welding Mode: GTAW/TIG (can do root pass, filling, and final welding)
Welding Power: OEM products in China or as per customers' demands

As a specialized automatic pipe welding machine manufacturer based in China, we also provide automatic welding machine for root pass weld, piping fabrication fast fitting-up machine, high speed pipe end beveling machine, automatic piping welding workstation, and much more.
