Model: PFFUM-16Aa/24Aa/32Aa/48Aa/64Aa；PFFUC-16Aa/24Aa/32Aa/48Aa/64Aa

Features

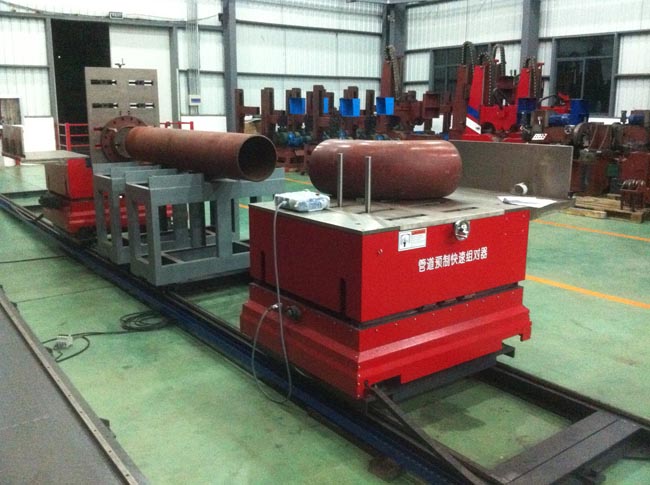

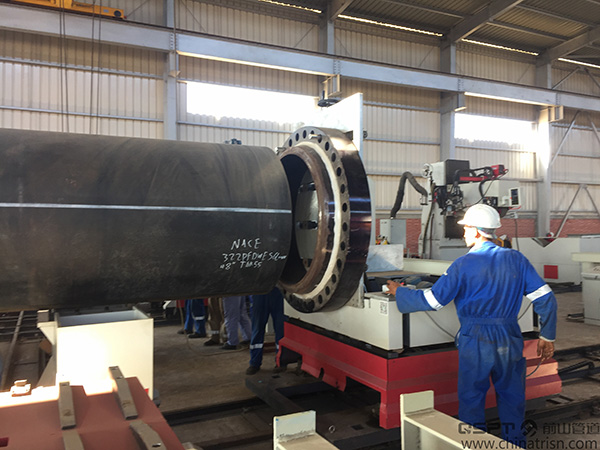

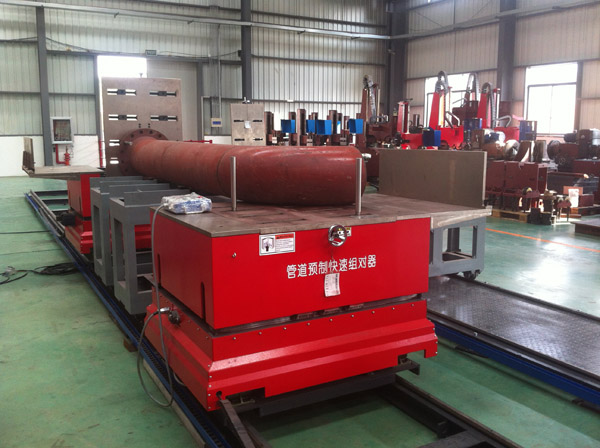

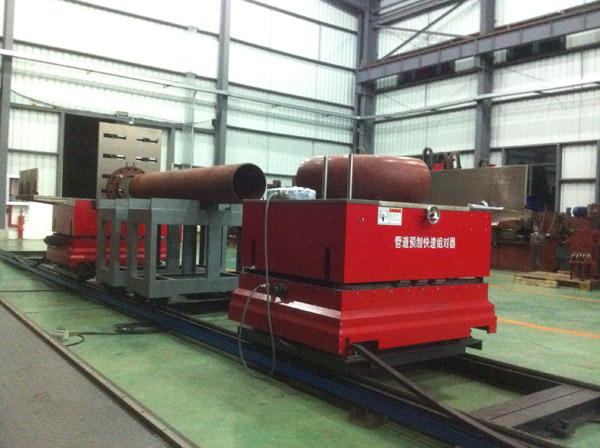

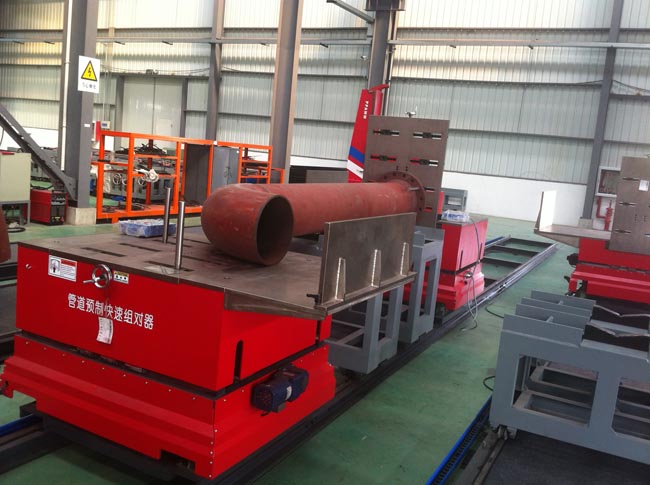

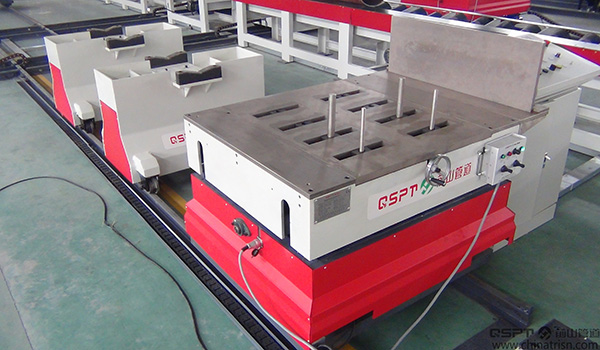

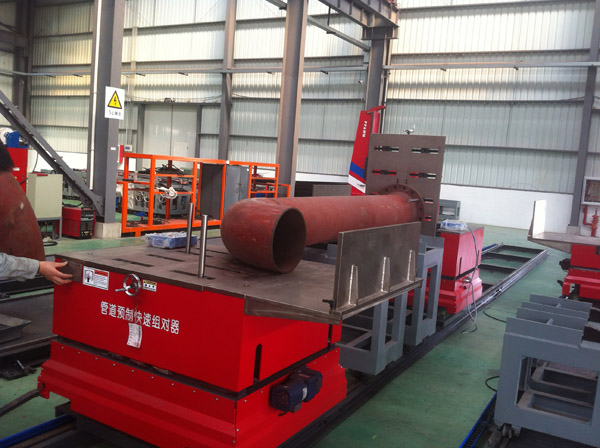

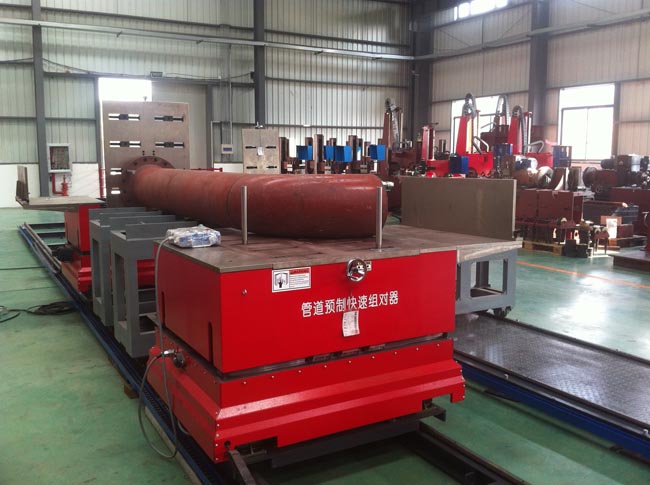

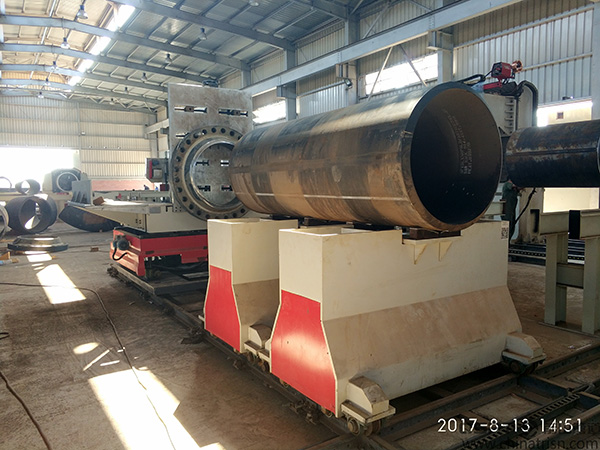

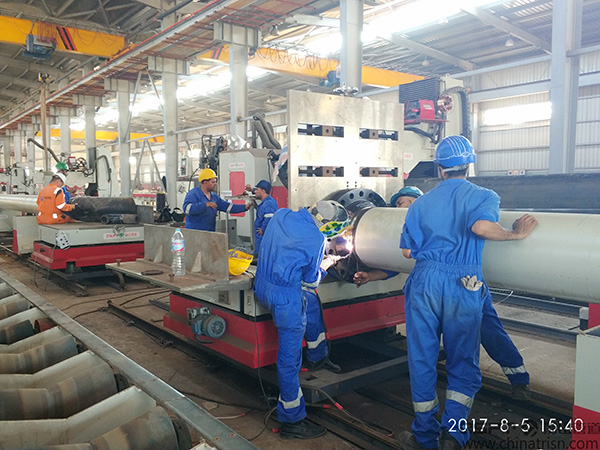

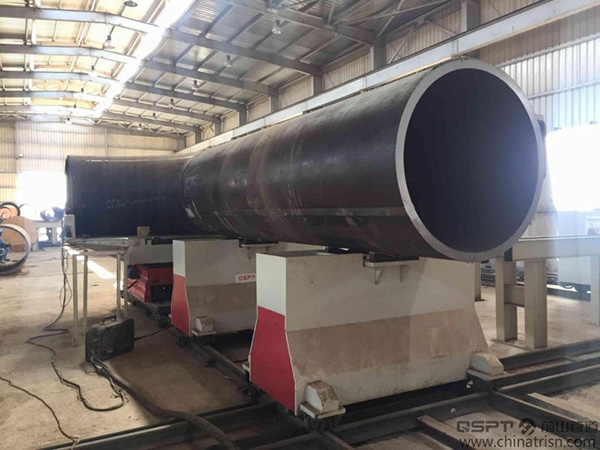

1. The piping fabrication fast fitting-up machine offers fit-up and tack welding of the straight pipe with fittings such as flange elbow, tee, etc. directly.
2. The machine increases the efficiency and quality of pipe-fittings such as flange elbow, tee, etc. fitting-up.
3. The piping fabrication fast fitting-up machine requires fewer skills for fitting-up pipes and flanges and reduces work difficulty for the operators.
4. Patented product, the first commercialized multi-functional fitting-up machine; realizing multi-functional fitting-up pipe and pipe fittings such as flange, elbow, tee, reducer, etc; realizing electrically-powered moving in six directions up/down, left/right, front/back; with double supporting travelling trolleys; operated by aluminum alloy control box. The most efficient machine widely used domestically and overseas.
5. Patented product; suitable for fitting up segments with “fitting + pipe + fitting”; fitting-up efficiency increased by more than 100%; two multi-functional fitting-up heads; two movable supporting trolleys; one machining rail; fitting-up heads installed separately at both ends of the rail and travel along the centerline in the axial direction according to the length of pipe; fitting up synchronously at both ends (fitting-up heads move in six directions automatically: up/down/left/right /back/front); operated with aluminum alloy control box.

Applications
The piping fabrication fast fitting-up machine is used for standard wall thickness pipes and fittings (A1/A2) and heavy wall thickness pipe and fittings (A3/A4).

Technical Parameters of the Pipe Fabrication Fast Fitting Up Machine
Pipe Diameter Applicable: DN400/DN600/DN800/DN1200/DN1600
The Longest Pipe: 6M (or depending on the situation)
Fitting-up System: 1 set; 2 sets
Moving Up/Down: With screw lifter, driven electrically
Moving Left/Right: Linear guiding rail, driven and movement electrically
Vertical Turnover: With screw lifter, driven electrically
Lengthwise Moving: Motorized driving square-steel track
Max Loading Capability: 500KG/500KG/1000KG/1000KG; 750KG/750KG/1500KG/1500KG
Bracket System: 2 sets
Max Loading Capability: 2,500KG
Lengthwise Moving: Manually driving
Track System: 1 set
Track Length: 7.5M (or depending on the situation)
Track Type: Square-steel track

Qianshan is a China-based piping fabrication fast fitting-up machine manufacturer and supplier. Our company also provides pipe plasma beveling and cutting machine, automatic piping welding workstation, axial pipe end beveling machine, longitudinal pipe automatic conveying system, and more.
