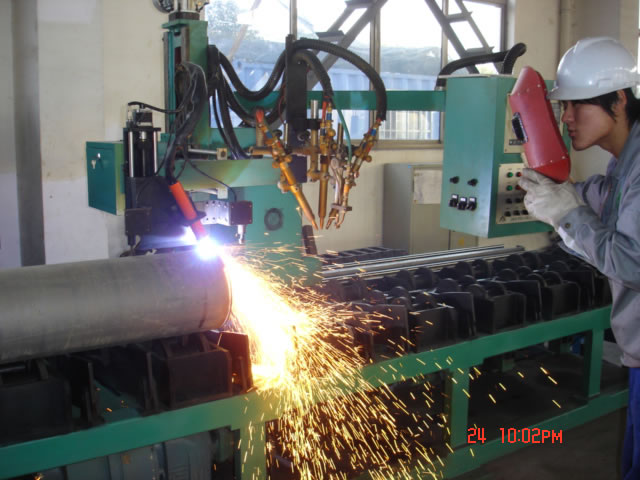

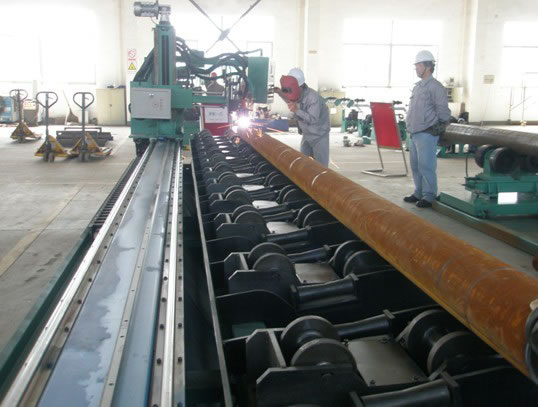

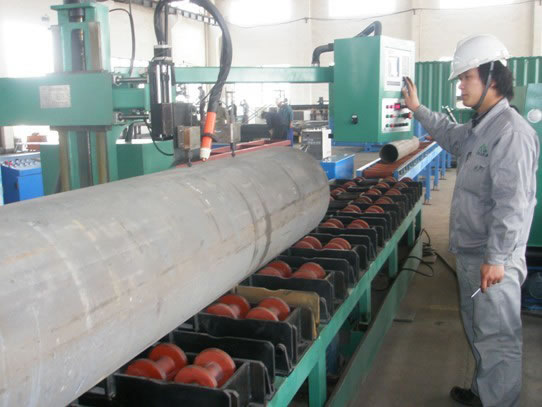

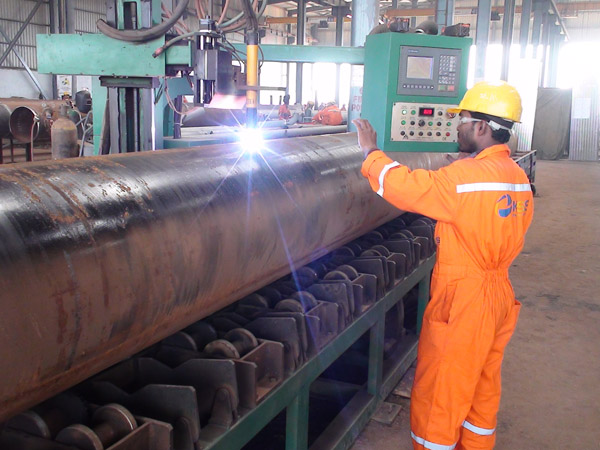

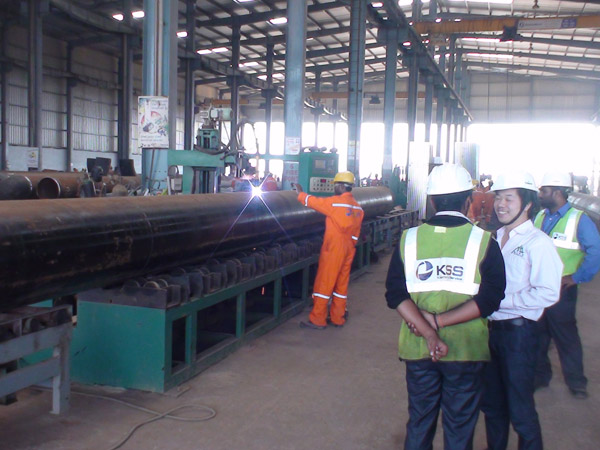

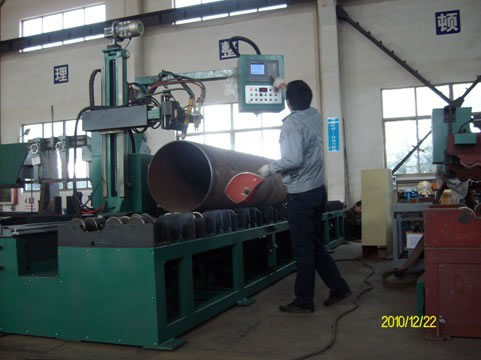

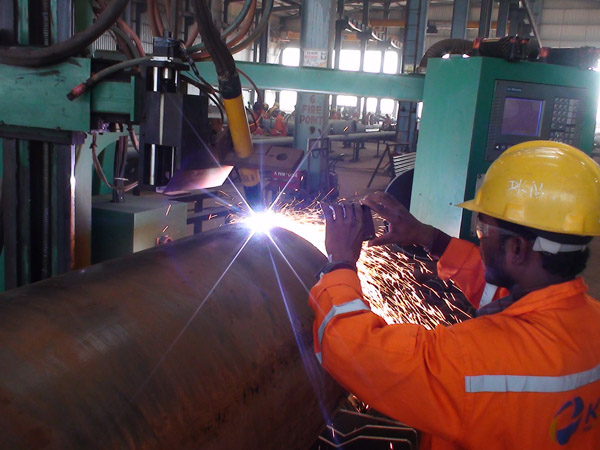

Pipe Plasma Beveling and Cutting Machine

Model: BPPBM-24A

Features
1. The pipe plasma beveling and cutting machine offers good on-line performance (designed as per the on-line equipment of the production line).
2. It offers a beveling speed of ≤2Min/pipe bevel (DN200 SCH40).
3. It has bevel cutting of: cutting off and with one bevel of the pipe simultaneously.
4. The pipe plasma beveling and cutting machine offers good bevel quality.

Technical Parameters of the Pipe Plasma Beveling and Cutting Machine
(Roller Bench Type)

Pipe Diameter Applicable: DN100-600(φ114-610)
Applicable Wall Thickness: 1-18 mm
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Cutting Length: 6350MM
Bevel Shape: V
Cutting Direction: Lengthwise
Roller Bench:
(1). Structure: Three line roller with fixed distance
(2). Roller Bench Length:7000MM
(3). Driving System: Servo motor + precision reducer
(4). Rev: 0-2.5M/Min (VF stepless speed adjustment)
(5). Roller Bench Material: 45#, Surface bluing treatment
(6). Rotation Accuracy: <2.0MM
Trolley System:
(1). Trolley Stroke: 6350MM (moving lengthwise)
(2). Cutting Torch Travel: 700MM (up/down); 300MM (left/right)
(3). Cutting With: Plasma cutting (can be equipped for flame cutting)
(4). Cutting Torch Angle: ±45° (adjustable)
(5). Cutting Torch Quantity: One piece of plasma cutting torch
(6). Angle Error: <2°
(7). Length Fixing Accuracy: <2.0MM
Control System: SH-2000H CNC Cutting System
Length-Measuring System: CNC length measuring which is included in the control system
Conveying System: Built in conveying system equipped with a lifter; additionally, one set of conveying system can be provided for bevel cutting machine if necessary and conveying can be implemented manually or electrically
Cutting Power: Our OEM products which are famous in China (or as per customers' demands)

Qianshan is a China-based pipe plasma beveling and cutting machine manufacturer. We also provide high speed pipe end beveling machine, pipe fabrication production line, automatic piping welding machine, pipe cutting and beveling workstation, and more.
