Automatic Pulse Tube Sheet Welding Machine

Home » Products » Special Welding Equipment » Automatic Pulse Tube Sheet Welding Machine (GTAW/TIG)
Automatic Pulse Tube Sheet Welding Machine

Model: PAAWM-80A

Technical Parameters of the Automatic Pulse Tube Sheet Welding Machine (GTAW/TIG)
Welding Source

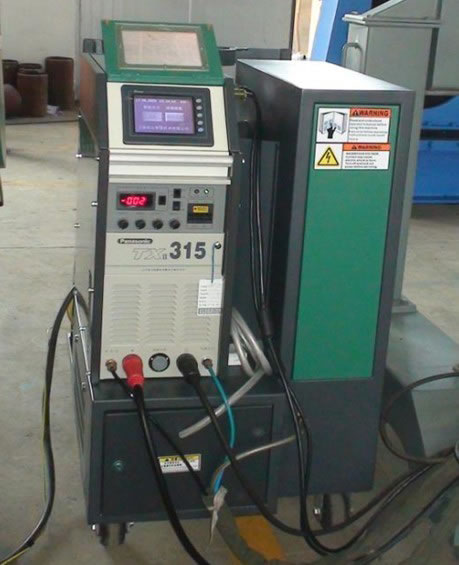

Model of the Welding Source: Panasonic TIGSTAR400
Type of Power Source: IGBT inversion
Welding Current: 4-315A
Duty Cycle: 315A 60; 244A 100%
Rated Load Voltage: 70V
Rated Power: 9.5 kw
Fluctuation Range of Input Voltage Allows: 380v±10%
Frequency: 50/60Hz

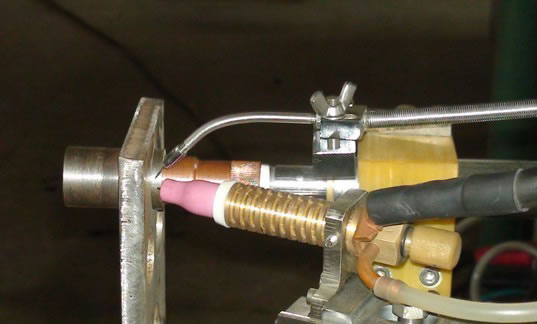

Welding Head
Pipe Diameter: Φ8~Φ80mm (or as per request)
Pipe Wall Thickness: 0.5-6.5mm
Maximum Length of Tube Elongation: 10mm
Maximum Depth of Tube Indentation: 2mm
Feeding Wire Adjustable Angle: ≤45°
Feeding Speed: 0.1~1.5m/min
Dia. of Filler Wire: 0.8mm
Rev Speed of Head: 0.15~6r /min
Welding Speed: 50~150mm/min
Tungsten Adjustable Angle: ≤45°
Positioning Spindle Cooling: Automatic forced cycle water-cooled

Program-controlled System
Welding Current Adjustment Range: 4~315A
Current Rise Time: 0.1~20s
Current Fall Time: 0.1~20s
Pulse Frequency: 0.5~500Hz
Duty Cycle Adjustment Range: 10%~50%
Aspirated Time in Advance: 1~20s
Time Lag Aspirated: 2-20s
Feeding Speed Adjustment Range: 0~1.5m/min
Welding Head Rev Speed Adjustment Range: 0.15~6r/min
Built-in Storage Capacity of 100 Welding Code
Can Partition Paragraph: 1-6 paragraph
Display: LCD

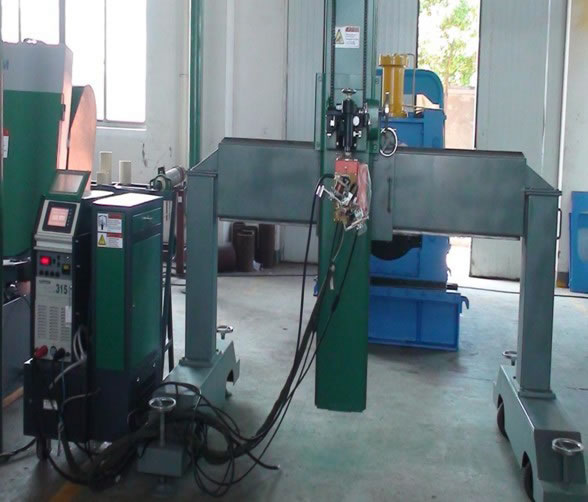

Gantry and 5D System
Lateral Movement Stroke: 16000mm
Vertical Movement Stroke: 16000mm
Axial Movement Stroke: 300mm

As a professional automatic pulse tube sheet welding machine manufacturer and supplier based in China, we also offer high speed pipe cutting and beveling machine, pipeline end beveling machine, pipe fabrication production line, automatic welding machine for root pass weld, and much more.
