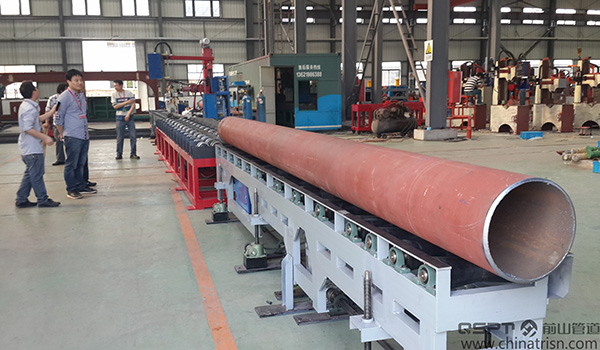

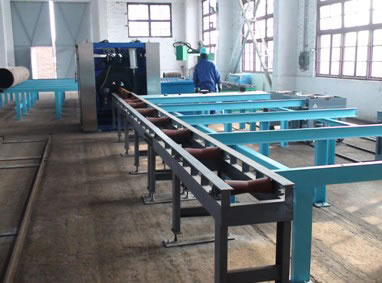

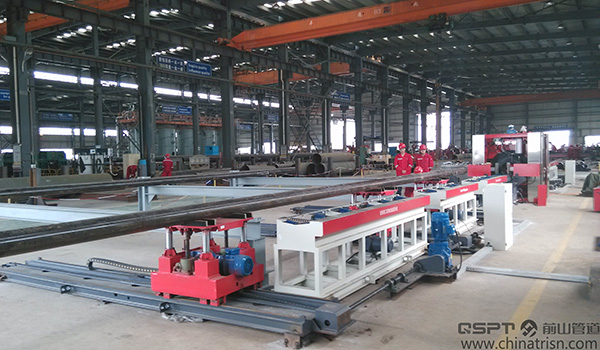

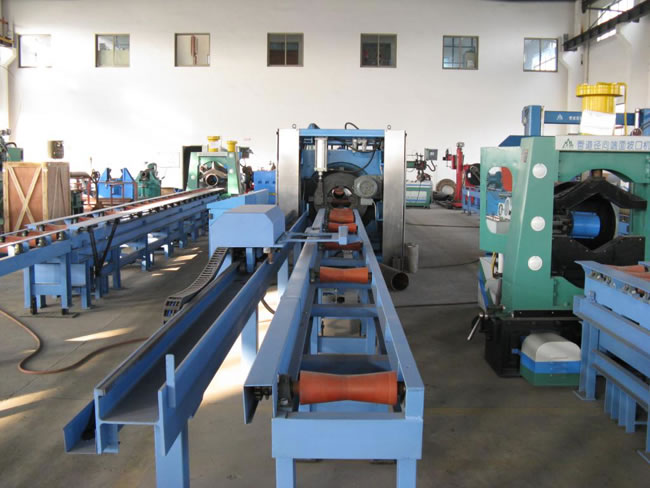

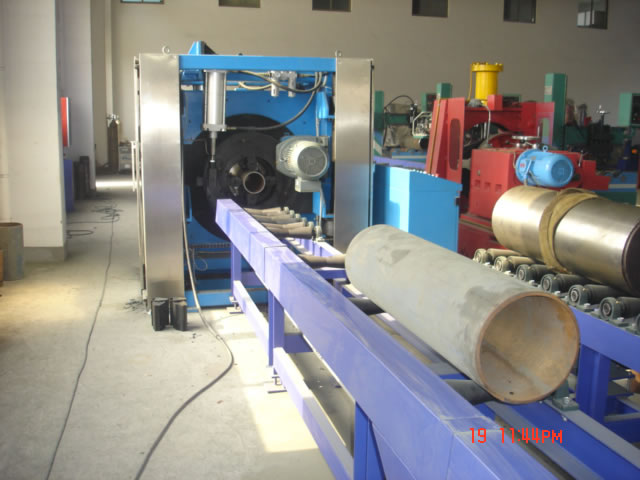

Pipe Conveying System for beveling Machine

Model: PLTPS~24C1/C2

Features
1. The pipe conveying system for beveling machine conveys the pipe automatically or manually when the pipe cutting and beveling machine works and the pipe can be removed from the machine with a turnover mechanism if necessary.
2. It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.

Technical Parameters of the Pipe Conveying System for Beveling Machine
Pipe Diameter Applicable: DN50~600(φ60~610)
Conveying Length: 1,000Mm at feed in end and 500mm at feed out end (or depend on customers' requirements)
Line Length: 7.5M at feed in end; 7.5M at feed out end
Line Height: 800MM
Material of the Roller Bench: Carbon steel with blue treated surface (coated with rubber if necessary)
Conveying Speed: 2~20M/Min
Speed Regulation Mode: Manual/VF stepless speed adjustment
Control System: Manual/PLC control, shared with the pipe cutting length measuring system (or depending on the situation)
Turnover Mechanism: Nil (or depending on the situation)
Lifting System: A lifting system could be equipped if required to adjust the center elevation of pipes automatically and to bevel pipes of different diameters
Turning System: A turning system is equipped to turn pipes automatically and to bevel the two end of pipe(option)

Qianshan is a China-based manufacturer and supplier of pipe conveying system for beveling machine. Our company provides pipe fabrication conveying equipment, pipe fabrication welding equipment, pipe fabrication production line, pipe fabrication beveling equipment, and much more.
