Model: PLTCS-16Aa/24Aa; PLTCS -16Bb/24Bb/32Bb/40Bb
Features

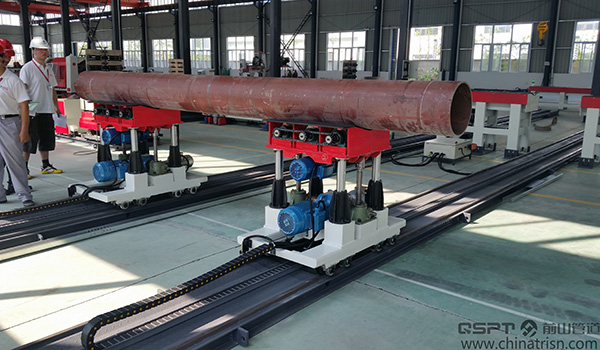

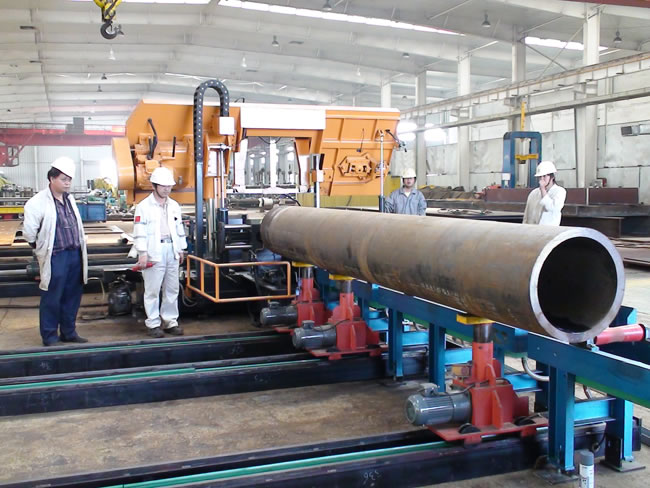

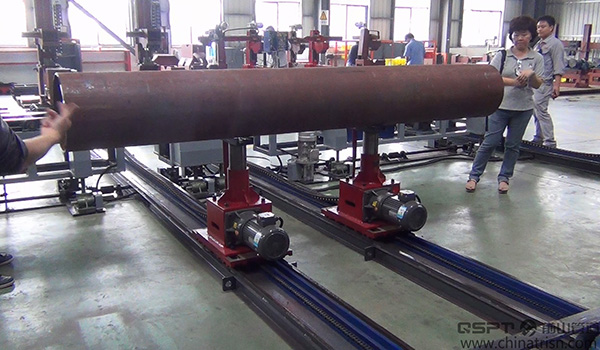

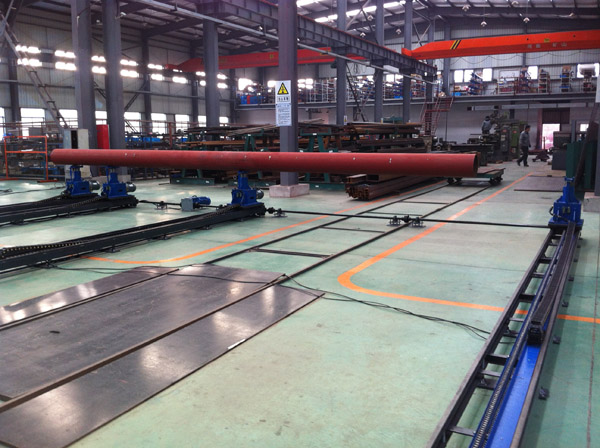

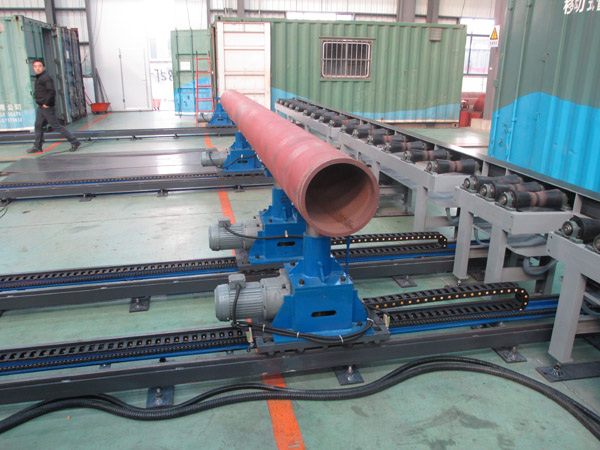

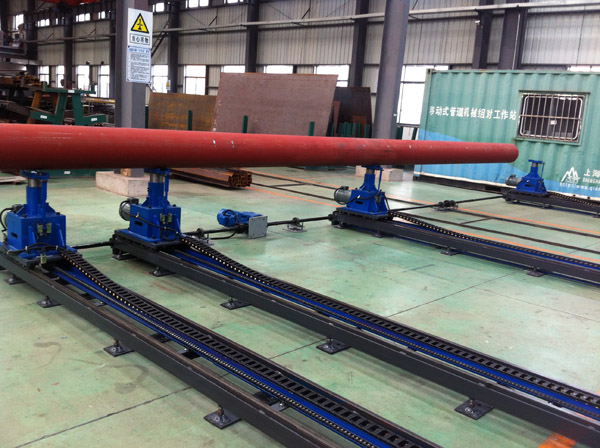

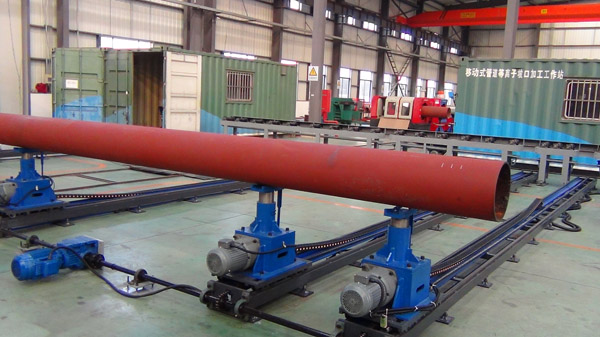

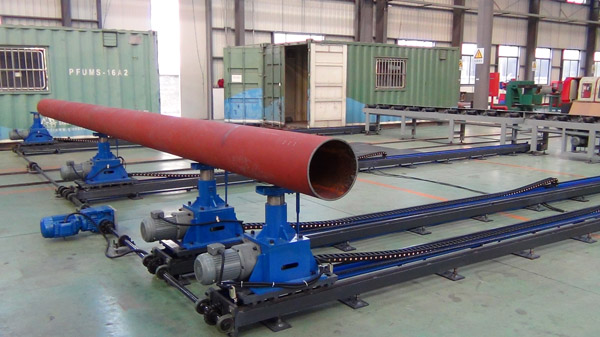

1. The transverse pipe automatic conveying system conveys the pipe or spool pieces transversely when they are beveling or automatically welding.
2. It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.

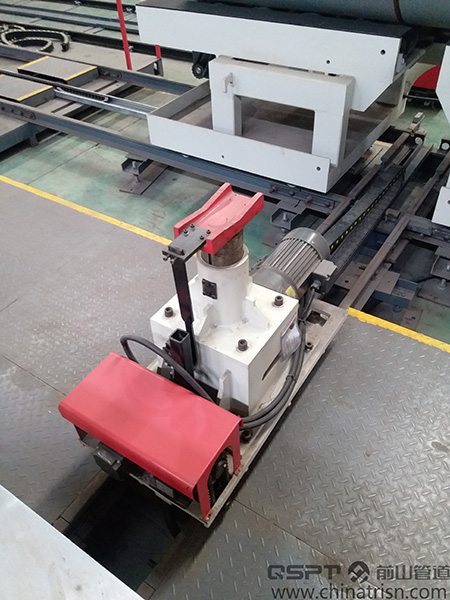

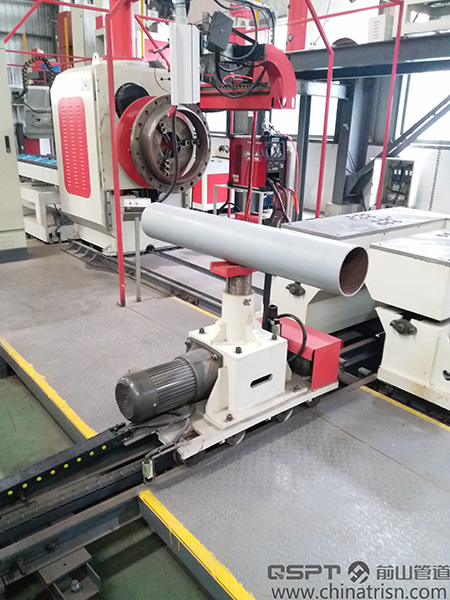

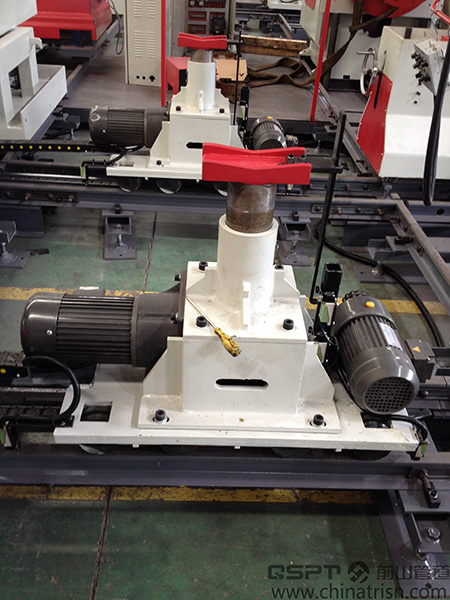

3. Patented product; achieving lateral conveying quickly, smoothly and securely, able to replace the turnover mechanism; two or three conveying trolleys equipped with single screw and single guiding rod; 18# light rails; electric lifting and moving; VF stepless speed control; manual control on console (wireless remote control for option).
4. Patented product; achieving lateral conveying quickly, smoothly and securely; able to replace the turnover mechanism; two or three conveying trolleys equipped with double screws and four guiding rods; two or three 18# light rails; electric lifting and moving; VF stepless speed control; manual control on console (wireless remote control for option).
Technical Parameters of the Transverse Pipe Automatic Conveying System
Pipe Diameter Applicable: DN400/DN600; DN400/DN600/DN800/DN1000
Conveying Length: ≥1000MM (or depending on customers' requirements)
Line Length: 7.5M (or depending on the situation)
Line Height: 800MM
Trolley Number: 4 sets
Lifter Mechanism: With screw lifter, driven electrically
Lifter Route: ±30MM
Conveying Mechanism: Chain sprocket mechanism
Speed of Conveying: 0-10M/min
Max Loading Capability: 2500KGS/5000KGS
Qianshan is a professional transverse pipe automatic conveying system manufacturer based in China. In addition to pipe fabrication conveying equipment, we offer pipe fabrication beveling equipment, pipe fabrication cutting equipment, pipe fabrication production line, pipe fabrication welding equipment, and much more.
