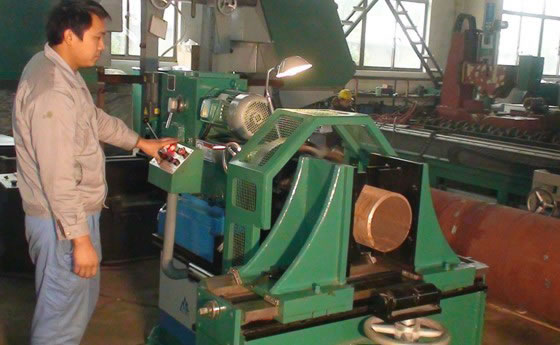

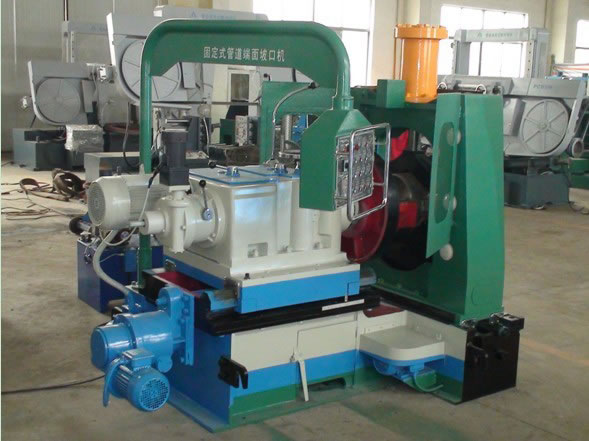

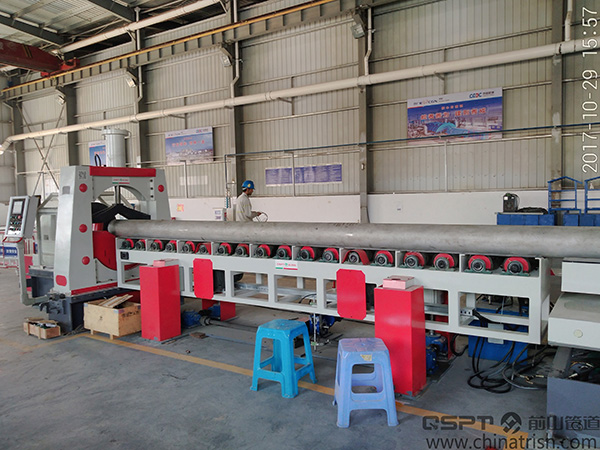

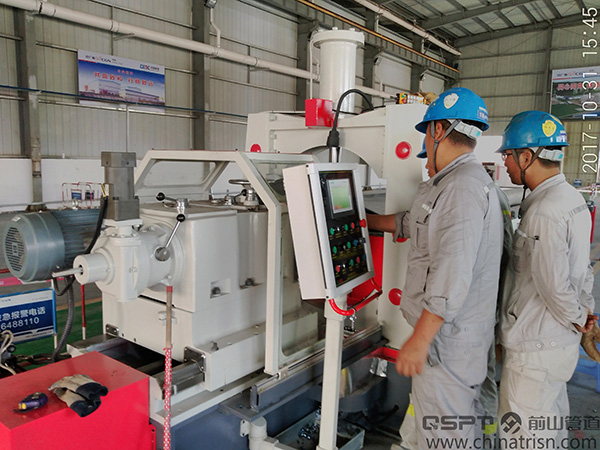

Radial Pipe End Beveling Machine

Model: FPEBM-16Aa/24Aa/32Aa

Features
1. The radial pipe end beveling machine offers a beveling speed of ≤5Min /pipe bevel (DN200 SCH40).
2. It offers bevel cutting of: cutting a pipe with other equipment such as band saw and then machining each bevel.
3. Bevel quality of the radial pipe end beveling machine is very good.

Applications
The radial pipe end beveling machine is used for machining the U or V shape bevels for a number of pipes with heavy wall thickness.

Technical Parameters of the Radial Pipe End Beveling Machine
Pipe Diameter Applicable: DN50-400(φ57-426)/DN100-600(φ114-610)/DN200-800(φ219-813)
Pipe Wall Thickness Applicable: 4-90mm/ 6-180MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Bevel Shape: U, X, V and double V
Cutting Direction: Radial automatic differential cutting feed
Retracting Direction: Radial automatic motor retracting
Driven by: Motor
Clamping System: Work piece is clamped by (screw rod) hydraulic cylinder
Bracket System: Screw lifting adjustable
Rev of the Principal Axis: 3shifts (67-123rpm)/9 shifts (34-304rpm)
Axial Displacement: 80mm(principle axis) 100mm(machine head); 150mm (principal axis), 300mm (machine head)
Bevel Angle of Tool Rest: 0°~37.5°
Widthwise Displacement: ±50mm; ±100mm
Control System: Gear shift for main shaft, VF speed change for axial direction movement and manual control
Mechanical Aligning: At the end of beveling machine conveying system it can be equipped with lifting device if necessary to automatically adjust the center elevation of the pipe to bevel pipes with different diameters

Qianshan is a radial pipe end beveling machine manufacturer and supplier based in China. We also provide high speed pipe cutting and beveling machine, pipe fabrication production line, pipe cutting and beveling workstation, pipe plasma beveling and cutting machine, and more.
