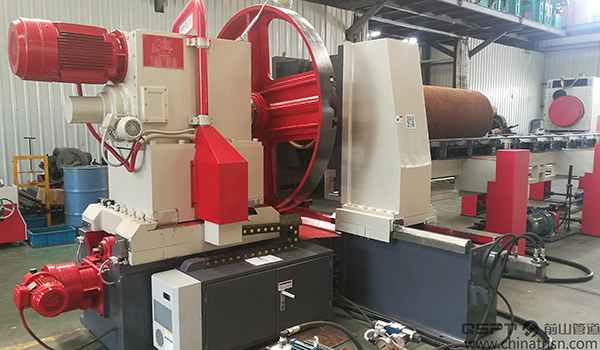

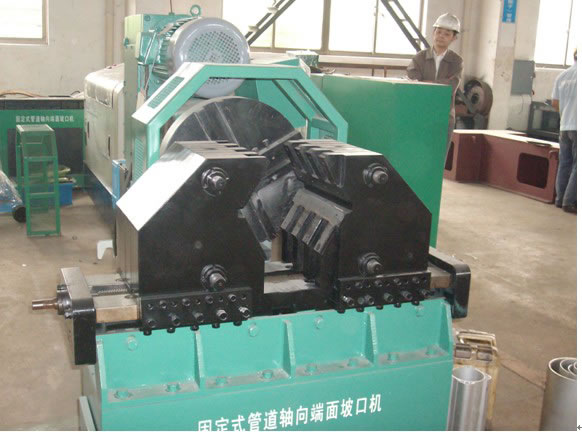

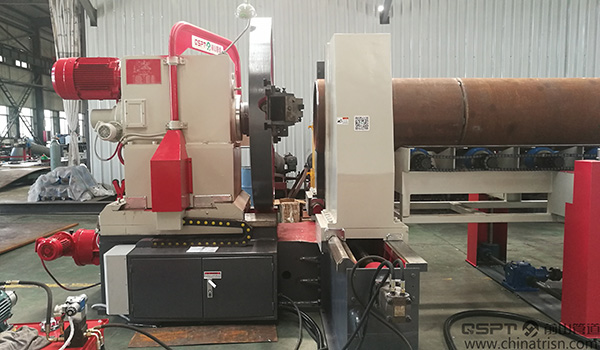

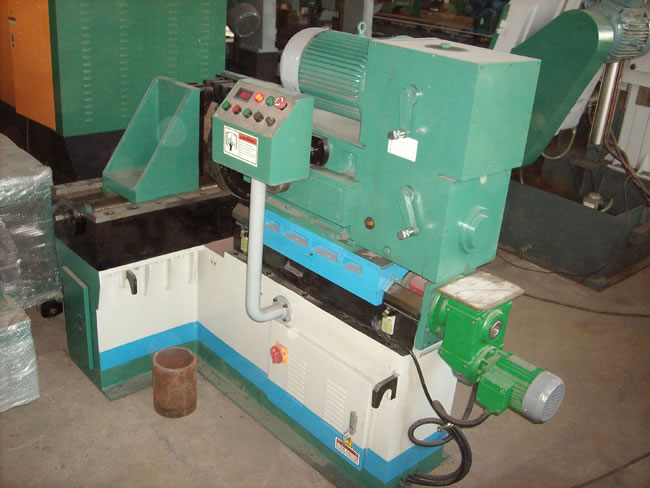

Model: PEBMF-16Ba /16BbFPEBM-24Ba/24Bb

Features
1. The axial pipe end beveling machine has a beveling speed of ≤2 Min/ pipe bevel (DN200 SCH40).
2. It offers bevel cutting of: cutting off the pipes with other cutting equipment then carry on beveling such as cutting band saw machines.
3. The bevel quality of the axial pipe ending beveling machine is very good.

Applications
The axial pipe end beveling machine is used for machining the V bevel for a number of pipes with standard wall thickness.

Technical Parameters of the Axial Pipe End Beveling Machine
Pipe Diameter: DN50-400(φ60-426)/DN50-600(φ60-610)
Pipe Thickness: ≤12mm by each tool and bevel (single tool and each time)
Pipe Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Type of Bevel: V
Cutting Feeding Direction: Axial direction feeding cut
Feed Displacement:150mm
Rev of Main Shift: Stepless speed control and variable frequency
Clamping System: Both sides centering clamping automatically by manual screw rod or hydraulic cylinder
Bracket System: Screw lifting adjustable
Control System: Gear shift and manual control; gear shift and PLC control
Mechanical Aligning: At the end of beveling machine conveying system it can be equipped with lifting device if necessary to automatically adjust the center elevation of the pipe to bevel pipes with different diameters

As a China-based axial pipe end beveling machine manufacturer, Qianshan also provides numerical control pipe end beveling machine, piping fabrication fast fitting-up machine, automatic piping welding machine, pipe plasma beveling and cutting machine, and much more.
