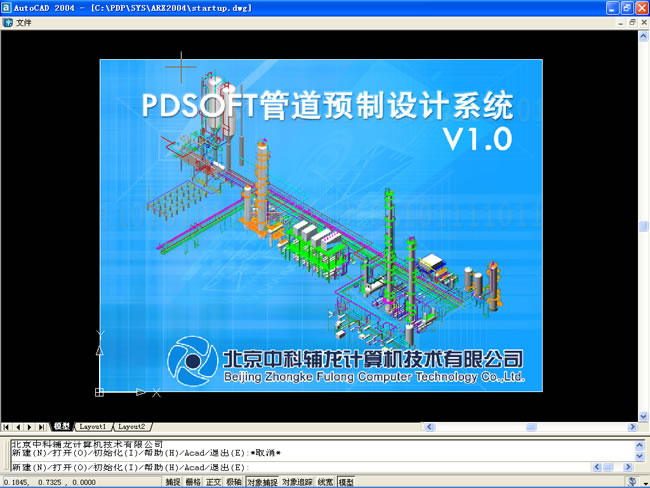

Model: Piping Prefabrication Detail Design System PDSOFT 3DPiping V1.0

Features
The PDSOFT piping prefabrication detail design software quickly generates drawings. This software is applicable for various drawings, prints and levels in the Design Institutes to quickly produce ISO drawings and spool drawings.

Technical Parameters of the PDSOFT Piping Prefabrication Detail Design Software

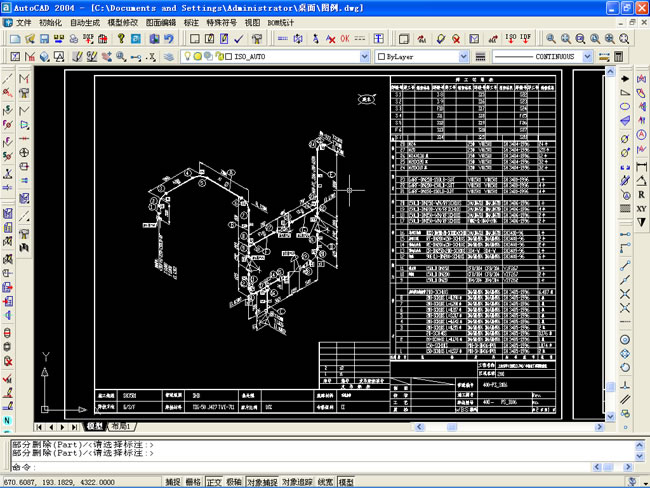

Generating ISO Drawing: The marks on the drawings are the number of the spool number, weld number, pipe cutting size, material list, etc., which are required by the on-site piping mounting and management.

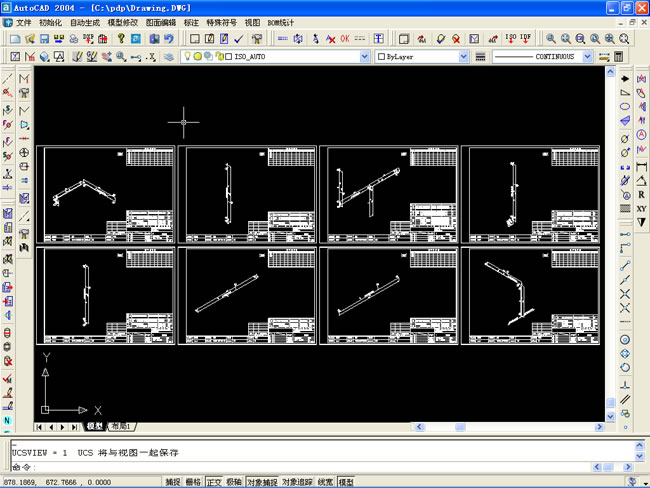

Generating Spool Piece Drawing: The marks on the drawings are weld number, pipe cutting size, material list, etc., which are required by the pipe shop fabrication.
